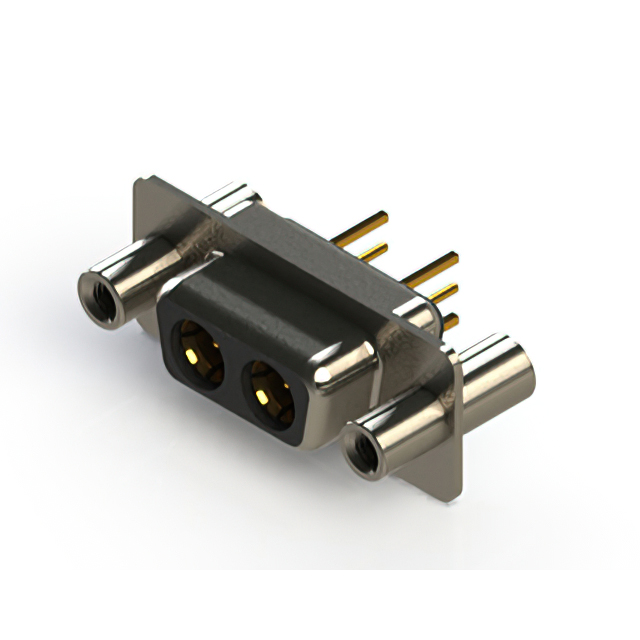

628-2W2-224-7NC

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DE-2W2, RECEPTACLE, 2 CONTACTS, 2 COAX, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet CAD Multiple Formats EN

628-2W2-224-7NC

Active

EDAC Inc.

COMBINATION LAYOUT D SUB CONNECTOR, 628C SERIES, DE-2W2, RECEPTACLE, 2 CONTACTS, 2 COAX, SOLDER

Deep-Dive with AI

DocumentsDatasheet CAD Multiple Formats EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	628-2W2-224-7NC

Color	Black
Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal, Coax
Dielectric Material	Polyester Thermoplastic
Features	Shielded
Flange Feature [custom]	M3
Flange Feature [custom]	M3
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2WK2, 1 (DE, E), 2V2, 2W2C, 2W2
Termination	Solder
Voltage Rating	125 VDC

628-2W2 Series

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Rows	Color	Number of Positions	Contact Finish	Termination	Voltage Rating	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Shell Size, Connector Layout	Contact Material	Connector Style	Dielectric Material	Shell Material, Finish	Mounting Type	Connector Type	Flange Feature	Material Flammability Rating	Contact Type	Contact Finish Thickness	Flange Feature [custom]	Flange Feature [custom]
EDAC Inc. 628-2W2-624-2NA	-55 °C	125 °C	Shielded	1	Black	2	Gold	Solder	125 VDC	0.76 Ám	30 Áin	20 A	1 (DE E) 2V2 2W2 2W2C 2WK2	Copper Alloy	Combo D-Sub	Polyester Thermoplastic	Nickel Plated Steel	Through Hole	Receptacle Female Sockets	Board Side (M3)	UL94 V-0	Signal and Power
EDAC Inc. 628-2W2-624-1N5	-55 °C	125 °C	Board Lock Shielded	1	Black	2	Gold	Solder	125 VDC	0.76 Ám	30 Áin	10 A	1 (DE E) 2V2 2W2 2W2C 2WK2	Copper Alloy	Combo D-Sub	Polyester Thermoplastic	Nickel Plated Steel	Through Hole	Receptacle Female Sockets	4-40 Board Side	UL94 V-0	Signal and Power
EDAC Inc. 628-2W2-224-7NC	-55 °C	125 °C	Shielded	1	Black	2	Gold	Solder	125 VDC				1 (DE E) 2V2 2W2 2W2C 2WK2	Copper Alloy	Combo D-Sub	Polyester Thermoplastic	Nickel Plated Steel	Through Hole	Receptacle Female Sockets		UL94 V-0	Coax Signal	Flash	M3	M3
EDAC Inc. 628-2W2-222-2N1	-55 °C	125 °C	Shielded	1	Black	2	Gold		125 VDC			20 A	1 (DE E) 2V2 2W2 2W2C 2WK2	Copper Alloy	Combo D-Sub	Polyester Thermoplastic	Nickel Plated Steel	Free Hanging (In-Line)	Receptacle Female Sockets	Housing/Shell (Unthreaded)	UL94 V-0	Signal and Power	Flash
EDAC Inc. 628-2W2-224-1T2	-55 °C	125 °C	Shielded	1	Black	2	Gold	Solder	125 VDC			10 A	1 (DE E) 2V2 2W2 2W2C 2WK2	Copper Alloy	Combo D-Sub	Polyester Thermoplastic		Through Hole	Receptacle Female Sockets	4-40 Board Side	UL94 V-0	Signal and Power	Flash
EDAC Inc. 628-2W2-224-7T4	-55 °C	125 °C	Shielded	1	Black	2	Gold	Solder	125 VDC				1 (DE E) 2V2 2W2 2W2C 2WK2	Copper Alloy	Combo D-Sub	Polyester Thermoplastic		Through Hole	Receptacle Female Sockets	4-40	UL94 V-0	Coax Signal	Flash
EDAC Inc. 628-2W2-224-7NA	-55 °C	125 °C	Shielded	1	Black	2	Gold	Solder	125 VDC				1 (DE E) 2V2 2W2 2W2C 2WK2	Copper Alloy	Combo D-Sub	Polyester Thermoplastic	Nickel Plated Steel	Through Hole	Receptacle Female Sockets	Board Side (M3)	UL94 V-0	Coax Signal	Flash
EDAC Inc. 628-2W2-624-3NB	-55 °C	125 °C	Shielded	1	Black	2	Gold	Solder	125 VDC	0.76 Ám	30 Áin	30 A	1 (DE E) 2V2 2W2 2W2C 2WK2	Copper Alloy	Combo D-Sub	Polyester Thermoplastic	Nickel Plated Steel	Through Hole	Receptacle Female Sockets	Board Side (M3)	UL94 V-0	Signal and Power
EDAC Inc. 628-2W2-224-5TB	-55 °C	125 °C	Shielded	1	Black	2	Gold	Solder	125 VDC				1 (DE E) 2V2 2W2 2W2C 2WK2	Copper Alloy	Combo D-Sub	Polyester Thermoplastic		Through Hole	Receptacle Female Sockets	Board Side (M3)	UL94 V-0	Coax Signal	Flash
EDAC Inc. 628-2W2-222-4T2	-55 °C	125 °C	Shielded	1	Black	2	Gold		125 VDC			40 A	1 (DE E) 2V2 2W2 2W2C 2WK2	Copper Alloy	Combo D-Sub	Polyester Thermoplastic		Free Hanging (In-Line)	Receptacle Female Sockets	4-40 Board Side	UL94 V-0	Signal and Power	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 7.29
Newark	Each	100	$ 7.80
		250	$ 7.61
		500	$ 7.34

Description

General part information

628-2W2 Series

2 (Coax) Position D-Sub, Combo Receptacle, Female Sockets Connector
