SPD08-060-L-RB-TR
Active3M
XF003825627 SPD08-060-L-RB-TR=SPD08/60/LATCH/.76UMAU/T&R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SPD08-060-L-RB-TR
Active3M
XF003825627 SPD08-060-L-RB-TR=SPD08/60/LATCH/.76UMAU/T&R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SPD08-060-L-RB-TR | SPD08 Series |
|---|---|---|
| Card Thickness | 0.062 in | 0.062 in |
| Card Thickness | 1.57 mm | 1.57 mm |
| Card Type | Non Specified - Dual Edge | Non Specified - Dual Edge, PCI Express™ |
| Color | Black | Black |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Type | Cantilever | Cantilever |
| Features | Latches, Board Guide | Latches, Board Guide |
| Gender | Female | Female |
| Material - Insulation | Liquid Crystal Polymer (LCP), Glass Filled | Liquid Crystal Polymer (LCP), Glass Filled, Liquid Crystal Polymer (LCP) |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Positions | 60 | 40 - 160 |
| Number of Positions/Bay/Row | - | 20 |
| Number of Positions/Bay/Row | - | 20 |
| Number of Positions/Bay/Row | - | 20 |
| Number of Positions/Bay/Row [custom] | 30 | 30 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 0.8 mm | 0.8 mm |
| Pitch [x] | 0.031 in | 0.031 in |
| Read Out | Dual | Dual |
| Termination | Solder | Solder |
SPD08 Series
CONN EDGE DUAL FML 200POS 0.031
| Part | Material - Insulation | Color | Termination | Contact Material | Card Thickness | Card Thickness | Features | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Gender | Contact Finish | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Card Type | Contact Type | Pitch [x] | Pitch [x] | Number of Positions | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Liquid Crystal Polymer (LCP), Glass Filled | Black | Solder | Copper Alloy | 0.062 in | 1.57 mm | Board Guide, Latches | 0.76 Ám | 30 Áin | Surface Mount | Female | Gold | Dual | -55 °C | 125 °C | 2 | Non Specified - Dual Edge | Cantilever | 0.8 mm | 0.031 in | ||||||
Liquid Crystal Polymer (LCP) | Black | Solder | Copper Alloy | 0.062 in | 1.57 mm | Latches | 0.76 Ám | 30 Áin | Surface Mount | Female | Gold | Dual | -55 °C | 125 °C | 2 | PCI Express™ | 0.8 mm | 0.031 in | 160 | ||||||
Liquid Crystal Polymer (LCP), Glass Filled | Black | Solder | Copper Alloy | 0.062 in | 1.57 mm | Board Guide, Latches | 0.76 Ám | 30 Áin | Surface Mount | Female | Gold | Dual | -55 °C | 125 °C | 2 | Non Specified - Dual Edge | Cantilever | 0.8 mm | 0.031 in | 40 | 20 | 20 | 20 | ||
Liquid Crystal Polymer (LCP) | Black | Solder | Copper Alloy | 0.062 in | 1.57 mm | 0.76 Ám | 30 Áin | Surface Mount | Female | Gold | Dual | -55 °C | 125 °C | 2 | PCI Express™ | 0.8 mm | 0.031 in | 160 | |||||||
Liquid Crystal Polymer (LCP), Glass Filled | Black | Solder | Copper Alloy | 0.062 in | 1.57 mm | Board Guide, Latches | 0.76 Ám | 30 Áin | Surface Mount | Female | Gold | Dual | -55 °C | 125 °C | 2 | Non Specified - Dual Edge | Cantilever | 0.8 mm | 0.031 in | 60 | 30 | ||||
Liquid Crystal Polymer (LCP), Glass Filled | Black | Solder | Copper Alloy | 0.062 in | 1.57 mm | Board Guide, Latches | 0.76 Ám | 30 Áin | Surface Mount | Female | Gold | Dual | -55 °C | 125 °C | 2 | Non Specified - Dual Edge | Cantilever | 0.8 mm | 0.031 in | 100 | |||||
Liquid Crystal Polymer (LCP), Glass Filled | Black | Solder | Copper Alloy | 0.062 in | 1.57 mm | Board Guide | 0.76 Ám | 30 Áin | Surface Mount | Female | Gold | Dual | -55 °C | 125 °C | 2 | Non Specified - Dual Edge | Cantilever | 0.8 mm | 0.031 in | ||||||
Liquid Crystal Polymer (LCP), Glass Filled | Black | Solder | Copper Alloy | 0.062 in | 1.57 mm | Board Guide | 0.76 Ám | 30 Áin | Surface Mount | Female | Gold | Dual | -55 °C | 125 °C | 2 | Non Specified - Dual Edge | Cantilever | 0.8 mm | 0.031 in | 80 | |||||
Liquid Crystal Polymer (LCP), Glass Filled | Black | Solder | Copper Alloy | 0.062 in | 1.57 mm | Board Guide | 0.76 Ám | 30 Áin | Surface Mount | Female | Gold | Dual | -55 °C | 125 °C | 2 | Non Specified - Dual Edge | Cantilever | 0.8 mm | 0.031 in | 40 | 20 | 20 | 20 | ||
Liquid Crystal Polymer (LCP), Glass Filled | Black | Solder | Copper Alloy | 0.062 in | 1.57 mm | Board Guide | 0.76 Ám | 30 Áin | Surface Mount | Female | Gold | Dual | -55 °C | 125 °C | 2 | Non Specified - Dual Edge | Cantilever | 0.8 mm | 0.031 in | 50 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
SPD08 Series

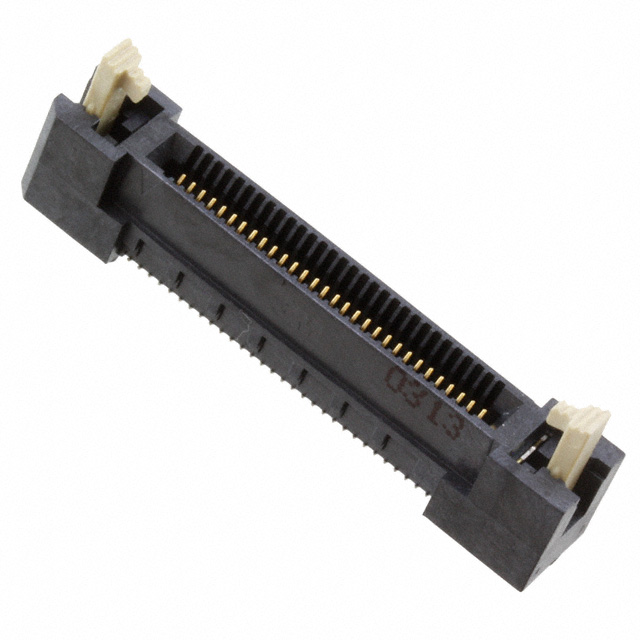

60 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black
