1810528
ObsoletePhoenix Contact
TERM BLOCK HDR 10POS HEADER 5.08
1810528
ObsoletePhoenix Contact
TERM BLOCK HDR 10POS HEADER 5.08
Description
General part information
1810528

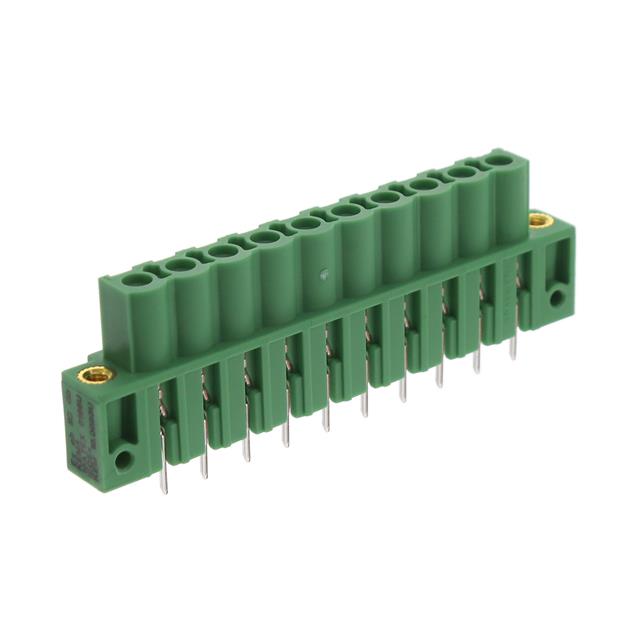

10 Position Terminal Block Header, Female Sockets 0.200" (5.08mm) Vertical Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1810528 |
|---|---|
| Color | Green |
| Contact Mating Finish | Tin |
| Contact Tail Length | 0.142 in |
| Current - IEC | 12 A |
| Features | Mating and Mounting Flange, Retention Latches |
| Header Orientation | Vertical |
| Housing Material | Nylon, Polyamide, PA |
| Insulation Height | 0.748 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Number of Positions | 10 |
| Pitch | 5.08 mm |
| Positions Per Level | 10 |
| Termination Style | Solder |
| Type | Header, Female Sockets |
| Voltage - IEC | 320 V |
