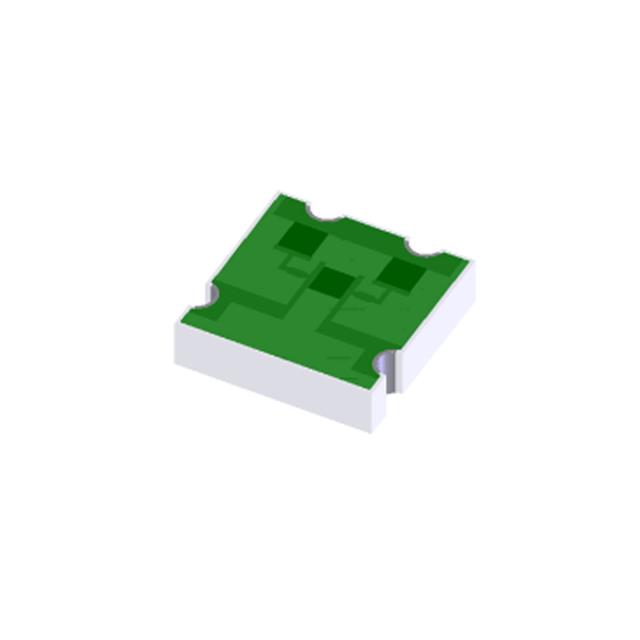

ATC2525CT-0300JN-94TR
ActiveVishay Barry
DC-2GHZ 15W AL2O3 CHIP ATTENUATO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ATC2525CT-0300JN-94TR
ActiveVishay Barry
DC-2GHZ 15W AL2O3 CHIP ATTENUATO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ATC2525CT-0300JN-94TR | ATC2525 Series |
|---|---|---|
| Attenuation Value | - | 3 - 30 dB |
| Attenuation Value | - | 1 - 20 dB |
| Attenuation Value | - | 21 dB |
| Attenuation Value | - | 19 dB |
| Attenuation Value [Max] [custom] | 3.5 dB | 3.5 - 11 dB |
| Attenuation Value [Min] [custom] | 2.9 dB | 2.9 - 9 dB |
| Frequency Range [Max] | 2 GHz | 2 GHz |
| Frequency Range [Min] | 0 Hz | 0 Hz |
| Impedance | - | 50 Ohms |
| Package / Case | 4-SMD, No Lead | 4-SMD, No Lead |
| Power (Watts) | 15 W | 15 - 30 W |
ATC2525 Series
DC-2GHZ 15W AL2O3 CHIP ATTENUATO
| Part | Impedance | Attenuation Value [custom] | Frequency Range [Max] | Frequency Range [Min] | Power (Watts) | Package / Case | Attenuation Value | Attenuation Value [Min] [custom] | Attenuation Value [Max] [custom] | Attenuation Value [Max] | Attenuation Value [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|
Vishay Barry ATC2525CT-0600JN-94TR | 50 Ohms | 6 dB | 2 GHz | 0 Hz | 15 W | 4-SMD, No Lead | |||||
Vishay Barry ATC2525CT-3000JN-99TR | 50 Ohms | 30 dB | 2 GHz | 0 Hz | 30 W | 4-SMD, No Lead | |||||
Vishay Barry ATC2525CT-0100JN-94TR | 50 Ohms | 2 GHz | 0 Hz | 15 W | 4-SMD, No Lead | 1 dB | |||||
Vishay Barry ATC2525CT-0300JN-99TR | 50 Ohms | 3 dB | 2 GHz | 0 Hz | 30 W | 4-SMD, No Lead | |||||
Vishay Barry ATC2525CT-0600JN-99TR | 50 Ohms | 6 dB | 2 GHz | 0 Hz | 30 W | 4-SMD, No Lead | |||||
Vishay Barry ATC2525CT-0100JN-99TR | 50 Ohms | 2 GHz | 0 Hz | 30 W | 4-SMD, No Lead | 1 dB | |||||
Vishay Barry ATC2525CT-2000JN-99TR | 50 Ohms | 2 GHz | 0 Hz | 30 W | 4-SMD, No Lead | 20 dB | |||||
Vishay Barry ATC2525CT-1000JN-94TR | 2 GHz | 0 Hz | 15 W | 4-SMD, No Lead | 9 dB | 11 dB | |||||
Vishay Barry ATC2525CT-0300JN-94TR | 2 GHz | 0 Hz | 15 W | 4-SMD, No Lead | 2.9 dB | 3.5 dB | |||||
Vishay Barry ATC2525CT-3000JN-94TR | 50 Ohms | 30 dB | 2 GHz | 0 Hz | 15 W | 4-SMD, No Lead |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 7.66 | |
| 10 | $ 4.88 | |||
| 50 | $ 3.76 | |||
| 100 | $ 3.42 | |||
| Digi-Reel® | 1 | $ 7.66 | ||
| 10 | $ 4.88 | |||
| 50 | $ 3.76 | |||
| 100 | $ 3.42 | |||
| Tape & Reel (TR) | 500 | $ 2.48 | ||
Description
General part information
ATC2525 Series
RF Attenuators 2.9dB ~ 3.5dB 0 Hz ~ 2 GHz 15W 4-SMD, No Lead
