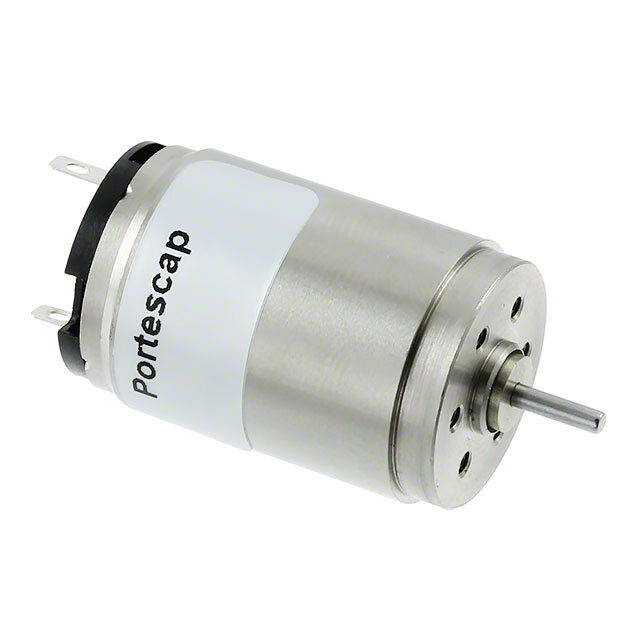

17N1R78213E1

Active

Portescap

STANDARD MOTOR 10000 RPM 7.5V

Search across all available documentation for this part.

Active

Portescap

STANDARD MOTOR 10000 RPM 7.5V

Technical Specifications

Parameters and characteristics for this part

STANDARD MOTOR 10000 RPM 7.5V

Part	Termination Style	Motor Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Length - Shaft and Bearing	Length - Shaft and Bearing [x]	Mounting Hole Spacing	Mounting Hole Spacing	Voltage - Rated	Type	Power - Rated	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	RPM	Function
Portescap 17N1R78213E1	Solder Tab	Brushed	0.669 in	17 mm	0.754 oz-in	5.33 mNm	-30 ░C	85 °C	0.06 lb	27.22 g	7.5 mm	0.295 in	10 mm	0.394 in	7.5 VDC	DC Motor	3.2 W	0.059 in	1.5 mm	10000 RPM	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 128.95

General part information

Brushed DC Motor Standard 10000 RPM 3.2W 7.5VDC
