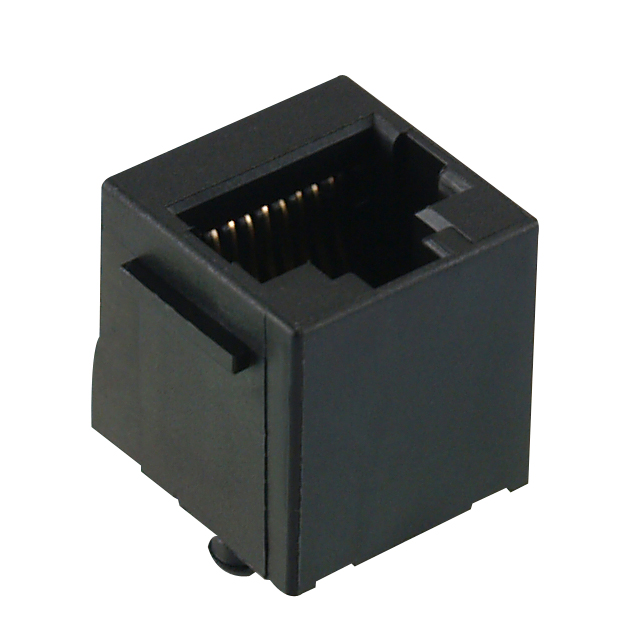

GDCX-PA-88

Active

Kycon, Inc.

MODJACK PERPEND 8P8C P/STOPS BLK

Search across all available documentation for this part.

Active

Kycon, Inc.

MODJACK PERPEND 8P8C P/STOPS BLK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GDCX-PA-88	GDCX-PA Series

Connector Type	Jack	Jack
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Finish Thickness	-	50 µin
Contact Finish Thickness	-	1.27 µm
Contact Material	Phosphor Bronze	Phosphor Bronze
Features	Board Lock, Panel Stop, Board Guide	Board Lock, Panel Stop, Board Guide
Housing Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED	Does Not Contain LED
Mounting Type	Through Hole	Through Hole
Number of Ports	1	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	4p4c, 6p4c, 8p8c (RJ45, Ethernet)
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Vertical	Vertical
Shielding	Unshielded	Unshielded
Tab Direction	User Selectable	User Selectable
Termination	Solder	Solder

MODJACK PERPEND 4P4C P/STOPS BLK

Part	Number of Ports	Number of Positions/Contacts	Mounting Type	Orientation	Features	Operating Temperature [Max]	Operating Temperature [Min]	Tab Direction	LED Color	Connector Type	Contact Material	Housing Material	Contact Finish	Termination	Number of Rows	Contact Finish Thickness	Shielding	Contact Finish Thickness	Contact Finish Thickness
Kycon, Inc. GDCX-PA-44	1	4p4c	Through Hole	Vertical	Board Guide, Board Lock, Panel Stop	85 °C	-40 °C	User Selectable	Does Not Contain LED	Jack	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Gold	Solder	1	Flash	Unshielded
Kycon, Inc. GDCX-PA-64-50	1	6p4c	Through Hole	Vertical	Board Guide, Board Lock, Panel Stop	85 °C	-40 °C	User Selectable	Does Not Contain LED	Jack	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Gold	Solder	1		Unshielded	50 µin	1.27 µm
Kycon, Inc. GDCX-PA-88	1	8p8c (RJ45, Ethernet)	Through Hole	Vertical	Board Guide, Board Lock, Panel Stop	85 °C	-40 °C	User Selectable	Does Not Contain LED	Jack	Phosphor Bronze	Polybutylene Terephthalate (PBT)	Gold	Solder	1	Flash	Unshielded
