1109724
ActiveSICK, Inc.
REF PHOTOELEC SWITCH
1109724
ActiveSICK, Inc.
REF PHOTOELEC SWITCH
Description
General part information
1109724

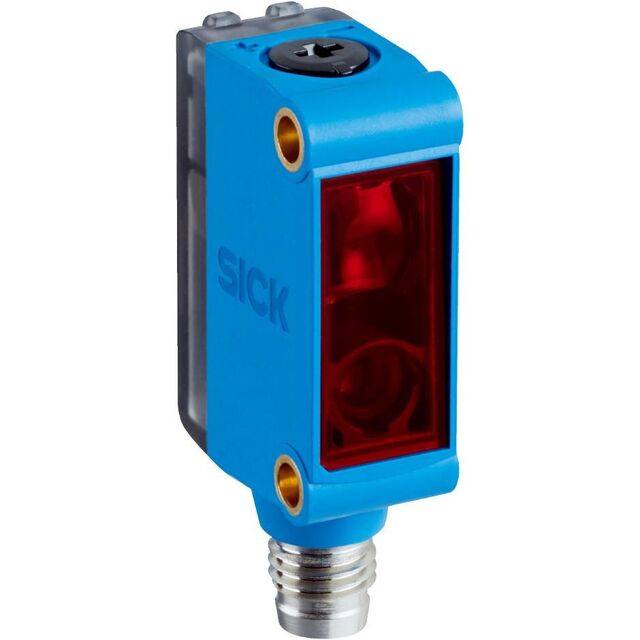

Retroreflective Optical Sensor 472.441" (12m) NPN - Dark-ON/Light-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | 1109724 |
|---|---|
| Adjustment Type | Adjustable, Potentiometer |
| Connection Method | M8, Connector |
| Ingress Protection | IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 680 nm |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -20 °C |
| Output Configuration | Light-ON, NPN - Dark-ON |
| Response Time | 625 µs |
| Sensing Distance | 472.441 " |
| Sensing Method | Retroreflective |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
