1-794486-1

Obsolete

TE Connectivity AMP Connectors

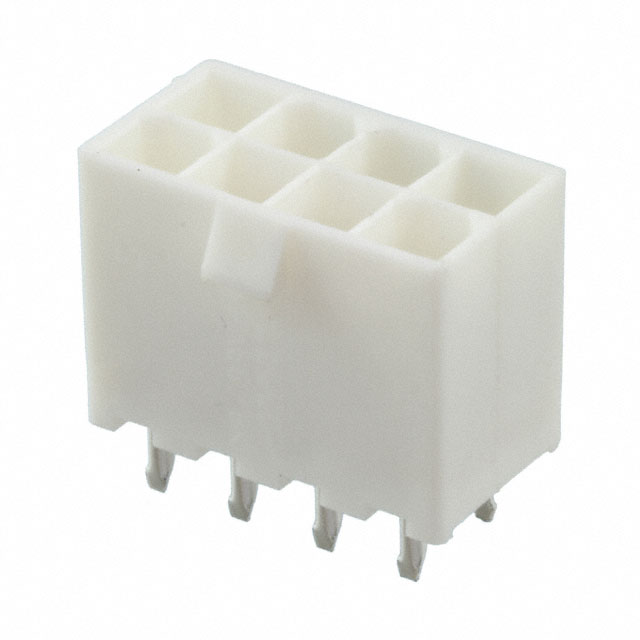

CONN HEADER VERT 8POS 4.2MM

Search across all available documentation for this part.

Obsolete

TE Connectivity AMP Connectors

CONN HEADER VERT 8POS 4.2MM

Technical Specifications

Parameters and characteristics for this part

Specification	1-794486-1

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	118.1 µin
Contact Finish Thickness - Mating	3 µm
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	12.8 mm
Insulation Height	0.504 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	4.2 mm
Pitch - Mating	0.165 in
Row Spacing - Mating	4.2 mm
Row Spacing - Mating	0.165 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	600 VAC

CONN HEADER VERT 8POS 4.2MM

Part	Connector Type	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Contact Length - Post	Contact Length - Post	Insulation Material	Voltage Rating	Termination	Fastening Type	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Number of Rows	Mounting Type	Number of Positions	Insulation Color	Number of Positions Loaded	Contact Material	Contact Shape	Contact Finish - Post	Material Flammability Rating
TE Connectivity AMP Connectors 1-794486-1	Header	12.8 mm	0.504 in	105 ░C	-55 °C	Board to Board, Cable	118.1 µin	3 µm	Shrouded - 4 Wall	3.5 mm	0.138 in	Nylon, Polyamide (PA)	600 VAC	Solder	Locking Ramp	4.2 mm	0.165 in	4.2 mm	0.165 in	Male Pin	2	Through Hole	8	Natural	All	Copper Alloy	Square	Tin	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Through Hole 8 position 0.165" (4.20mm)
