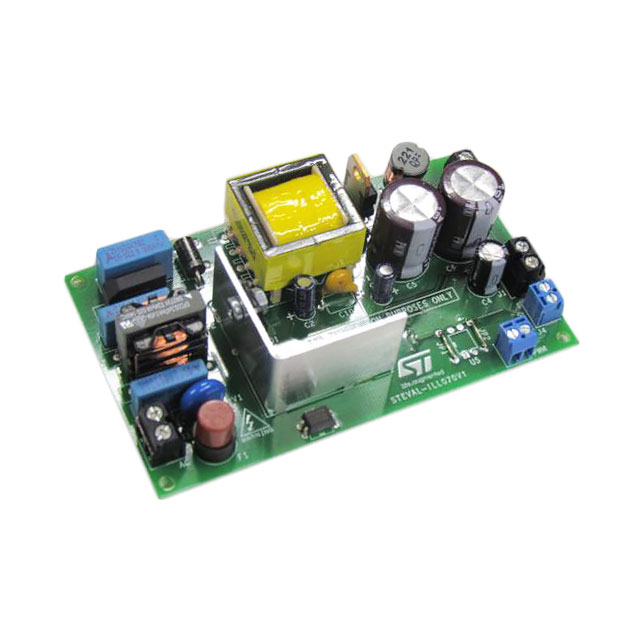

STEVAL-ILL070V1
ObsoleteSTMicroelectronics
BOARD SGL DIM STRING HVLED001
STEVAL-ILL070V1
ObsoleteSTMicroelectronics
BOARD SGL DIM STRING HVLED001
Description
General part information
STEVAL-ILL070V1
HVLED001 - 1 Isolated Output Dimmable LED Driver Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-ILL070V1 |
|---|---|
| Contents | Board |
| Current - Output / Channel | 700 mA |
| Features | Dimmable |
| Isolated Output Count | 1 |
| Output Type | Isolated |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | HVLED001 |
| Voltage - Input (AC) Maximum | 305 VAC |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
