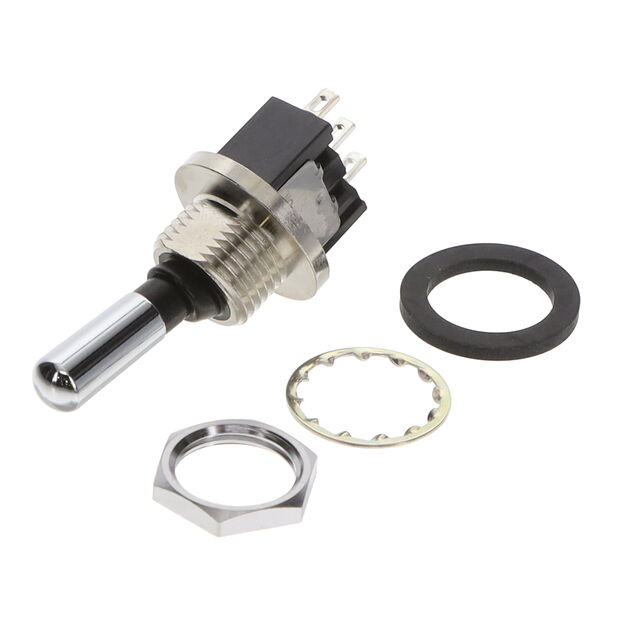

Specification	MN12WBW01

Actuator Length	20 mm
Actuator Type	Standard Round
Bushing Thread	M12 x 1
Bushing Thread Diameter	12 mm
Bushing Thread Pitch	1 mm
Circuit	SPDT
Current Rating	4 A, 6 A
Illumination	Non-Illuminated
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Mounting Type	Panel Mount
Panel Cutout Diameter	12.5 mm
Panel Cutout Shape	Circular
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V
