1731110077

Active

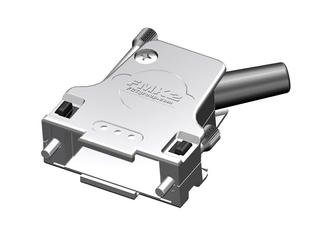

FCT METAL BACKSHELL FOR D-SUB CONNECTOR, SHELL SIZE 2, 45° ANGLE CABLE OUTLET, LARGE INNER CHAMBER, WITH RUBBER BUSHING AND #4-40 KNURLED THUMB SCREWS (TWO LENGTHS)

Find alt

Alpha

1731110077

Active

Molex

FCT METAL BACKSHELL FOR D-SUB CONNECTOR, SHELL SIZE 2, 45° ANGLE CABLE OUTLET, LARGE INNER CHAMBER, WITH RUBBER BUSHING AND #4-40 KNURLED THUMB SCREWS (TWO LENGTHS)

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

173111 Series

FCT Metal Backshell for D-Sub Connector, Shell Size 2, 45° Angle Cable Outlet, Large Inner Chamber, with M2.5 Threaded Insert

Technical Specifications

Parameters and characteristics for this part

Specification	1731110077

Accessory Type	Two Piece Backshell
Cable Exit Angle	45 °
Cable Type	Round
Color	Silver
Compatible D-Sub Size	15pos, HD26pos
Compatible Shell Size	A
Features	Mating Screws 4-40
Hardware	Cable Clamp, Strain Relief, Assembly Hardware
Material	Zinc Die Cast
Number of Positions	15
Plating	Nickel
Primary Material	Metal
Shielding	Shielded

173111 Series

FCT Metal Backshell for D-Sub Connector, Shell Size 2, 45° Angle Cable Outlet, Large Inner Chamber, with M2.5 Threaded Insert

...

Part	Material	Number of Positions	Cable Exit Angle	Plating	Compatible Shell Size	Cable Type	Accessory Type	Hardware	Primary Material	Compatible D-Sub Size	Features	Shielding	Color
Molex 1731110295
Molex 1731110368	Zinc Die Cast	25	45 °	Nickel	B	Round	Two Piece Backshell	Assembly Hardware Cable Clamp Strain Relief	Metal	25pos HD44pos	Mating Screws 4-40	Shielded	Silver
Molex 1731110473
Molex 1731110402
Molex 1731110437
Molex 1731110133	Acrylonitrile Butadiene Styrene (ABS)	15	180 °	Nickel	A	Round	Two Piece Backshell	Assembly Hardware Cable Clamp Strain Relief	Plastic	15pos HD26pos	Mating Screws 4-40	Shielded	Black
Molex 1731110783
Molex 1731110777
Molex 1731110313	Zinc Die Cast	9	90 °	Nickel	E	Round	Two Piece Backshell	Assembly Hardware Strain Relief	Metal	9pos HD15pos	Mating Screws 4-40	Shielded	Silver
Molex 1731110305	Zinc Die Cast	9	180 °	Nickel	E	Round	Two Piece Backshell	Assembly Hardware Cable Clamp Strain Relief	Metal	9pos HD15pos	Mating Screws 4-40	Shielded	Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Drawing
