CTCVCF-100J
ActiveCentral Technologies

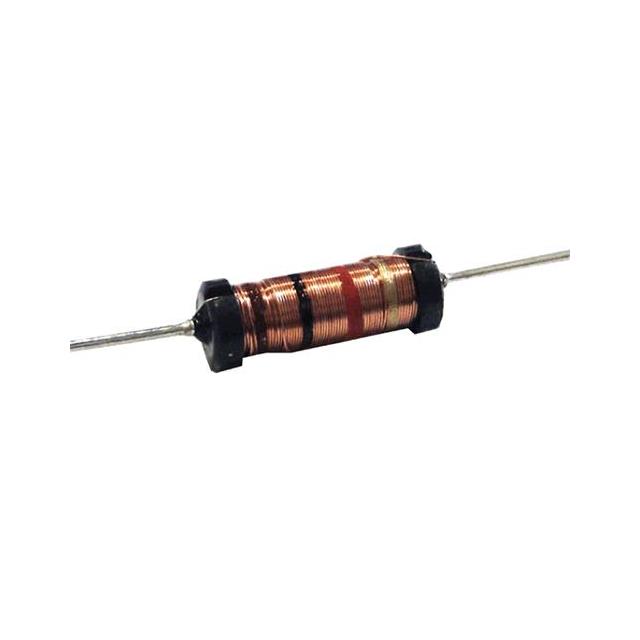

AXIAL LEAD CLEAR POWER INDUCTOR
CTCVCF-100J
ActiveCentral Technologies
AXIAL LEAD CLEAR POWER INDUCTOR
Description
General part information
CTCVCF-100J
10 µH Unshielded Inductor 2.9 A 90mOhm Max Axial
Technical Specifications
Parameters and characteristics for this part
| Specification | CTCVCF-100J |
|---|---|
| Current - Saturation (Isat) | 4.6 A |
| Current Rating | 2.9 A |
| DC Resistance (DCR) (Max) | 90 mOhm |
| Frequency - Self Resonant | 38 MHz |
| Inductance | 10 µH |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Q | 55 |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.236 in |
| Size / Dimension Length | 0.63 in |
| Tolerance | 5 % |
