Description
General part information
BT512365

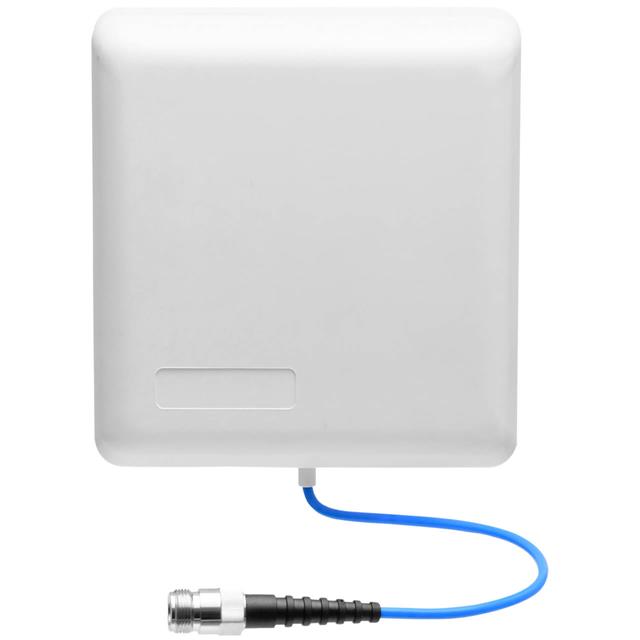

RF ANTENNA Signal Boosting Panel N Type Female Wall Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | BT512365 |
|---|---|
| Antenna Type | Panel |
| Applications | Signal Boosting |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 698 MHz |
| Frequency Range (Band 2) Maximum | 2.7 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Gain | 6.5 dBi, 8 dBi |
| Mounting Type | Wall Mount |
| Power - Max | 50 VA |
| RF Family/Standard | Cellular |
| Termination | N Type Female |
| VSWR | 1.8 |
