ZEN-STARTER01-V2
ObsoleteOmron Automation and Safety
CONTROL LOG 6 IN 4 OUT 100-240V
ZEN-STARTER01-V2
ObsoleteOmron Automation and Safety
CONTROL LOG 6 IN 4 OUT 100-240V
Description
General part information
ZEN-STARTER01-V2
Programmable Logic Controller (PLC) Chassis Mount, DIN Rail 100 ~ 240VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | ZEN-STARTER01-V2 |
|---|---|
| Approval Agency | cULus, CE |
| Display Type | LCD - Black Characters |

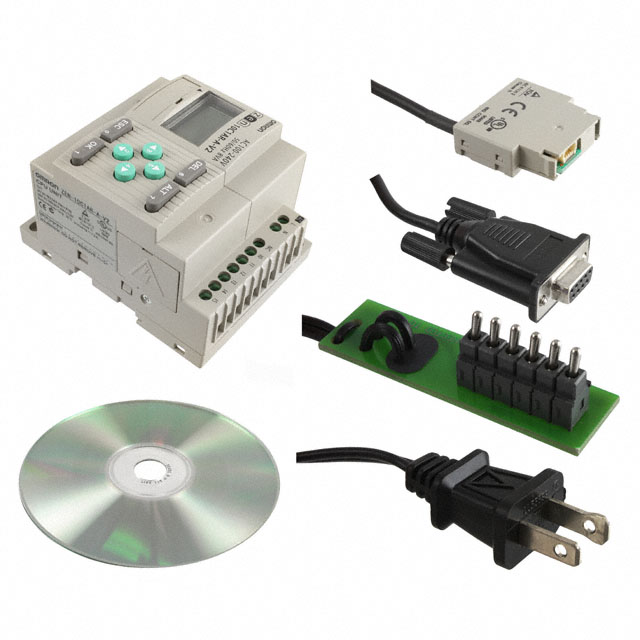

| Features - Starter Kit | Manual, Cable, Module, Software |
| Ingress Protection | IP20 |
| Input Types | Digital |
| Maximum Expandable Modules | 3 Modules |
| Mounting Type | Chassis Mount, DIN Rail |
| Number of Characters Per Row (Row 1) | 12 characters |
| Number of Characters Per Row (Row 2) | 12 characters |
| Number of Characters Per Row (Row 3) | 12 characters |
| Number of Characters Per Row (Row 4) | 12 characters |
| Number of Inputs | 6 |
| Number of Outputs | 4 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | 0 °C |
| Output Type | Relay |
| Software | ZEN Support Software |
| Voltage - Supply (Maximum) | 240 VAC |
| Voltage - Supply (Minimum) | 100 VAC |
| Weight | 0.662 lb |
