2821164
ActivePhoenix Contact

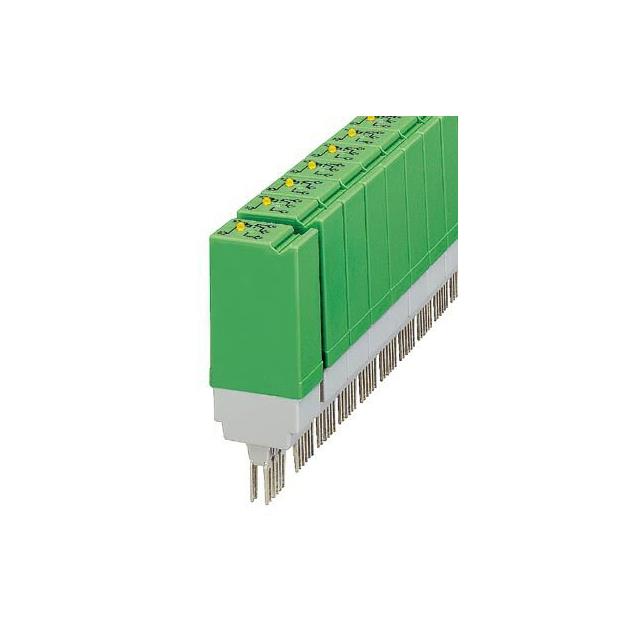

RELAY GEN PURPOSE SPDT 6A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2821164 | 28211 Series |
|---|---|---|
| Approval Agency | - | GOST |
| Coil Current | 5 mA | 5 - 10 mA |
| Coil Resistance | - | 6 kOhms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 120 VAC, 120 VDC | 60 - 120 VAC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A | 6 A |
| Features | - | Varistor, Lighted Indicator |
| Mounting Type | Socketable | Socketable |
| Operate Time | 7 ms | 7 ms |
| Operating Temperature [Max] | 50 °C | 50 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Relay Type | General Purpose | General Purpose |
| Release Time | 11 ms | 11 ms |
| Switching Voltage | 250 VAC, 250 VDC | 250 VAC |
| Termination Style | Plug In | Plug In |
28211 Series
RELAY GEN PURPOSE SPDT 6A 60V
| Part | Switching Voltage | Operate Time | Coil Current | Contact Rating (Current) | Relay Type | Coil Type | Termination Style | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Coil Resistance | Contact Material | Coil Voltage | Contact Form | Release Time | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2821106 | 250 VAC, 250 VDC | 7 ms | 10 mA | 6 A | General Purpose | Non Latching | Plug In | GOST | 50 °C | -20 C | 6 kOhms | Silver Nickel (AgNi) | 60 VAC | SPDT (1 Form C) | 11 ms | Socketable | Lighted Indicator, Varistor |
Phoenix Contact 2821164 | 250 VAC, 250 VDC | 7 ms | 5 mA | 6 A | General Purpose | Non Latching | Plug In | 50 °C | -20 C | Silver Nickel (AgNi) | 120 VAC, 120 VDC | SPDT (1 Form C) | 11 ms | Socketable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 173.89 | |
| 10 | $ 159.98 | |||
| 50 | $ 147.81 | |||
Description
General part information
28211 Series
General Purpose Relay SPDT (1 Form C) 120VAC/DC Coil Socketable
