T1209320232-000

Active

TE Connectivity Raychem Cable Protection

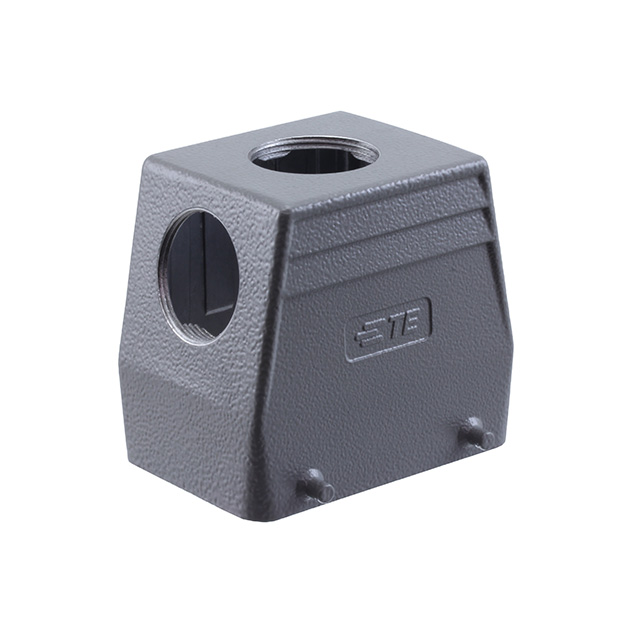

H32A-TS/G-2M32

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

H32A-TS/G-2M32

Technical Specifications

Parameters and characteristics for this part

Specification	T1209320232-000

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	H32A
Size / Dimension [x]	82 mm
Size / Dimension [x]	3.228 in
Size / Dimension [y]	56 mm
Size / Dimension [y]	2.205 in
Size / Dimension [z]	76 mm
Size / Dimension [z]	2.992 in
Style	Side and Top Entry
Thread Size	M32

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Lock Location	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Housing Finish	Thread Size	Housing Material	Size	Ingress Protection	Housing Color	Style
TE Connectivity Raychem Cable Protection T1200243220-000	125 °C	-40 °C	Hood	Locking Clip (2) on Base Bottom	60 mm	1.693 in	43 mm	2.362 "	4.724 "	120 mm	Powder Coated	M20 M32	Aluminum Alloy Die Cast	H24B	IP65 - Dust Tight Water Resistant	Gray	Side and Top Entry
TE Connectivity Raychem Cable Protection T1209320232-000	125 °C	-40 °C	Hood	Locking Clip (2) on Base Bottom	76 mm	2.205 in	56 mm	2.992 in	3.228 in	82 mm	Powder Coated	M32	Aluminum Alloy Die Cast	H32A	IP65 - Dust Tight Water Resistant	Gray	Side and Top Entry

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side and Top Entry M32 H32A IP65 - Dust Tight, Water Resistant
