Description
General part information

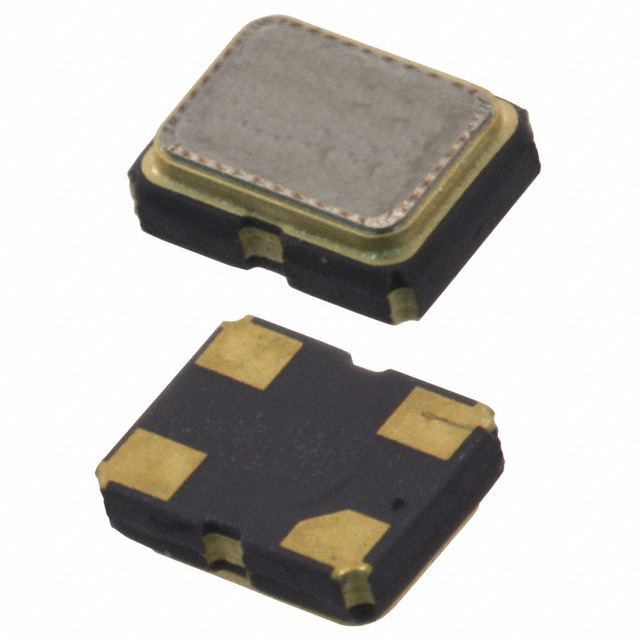

VG-4231CE 32.7680M-PSBM
32.768 MHz VCXO CMOS Oscillator 2.8V 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | VG-4231CE 32.7680M-PSBM |
|---|---|
| Absolute Pull Range (Maximum) | 95 ppm |
| Absolute Pull Range (Minimum) | -95 ppm |
| Base Resonator | Crystal |
| Current - Supply (Max) | 6.2 mA |
| Frequency | 32.768 MHz |
| Frequency Stability | 37 ppm |
| Height - Seated (Max) | 0.047 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Package Length | 3.2 mm |
| Package Name | 4-SMD |
| Package Width | 2.5 mm |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Type | VCXO |
| Voltage - Supply | 2.8 V |
