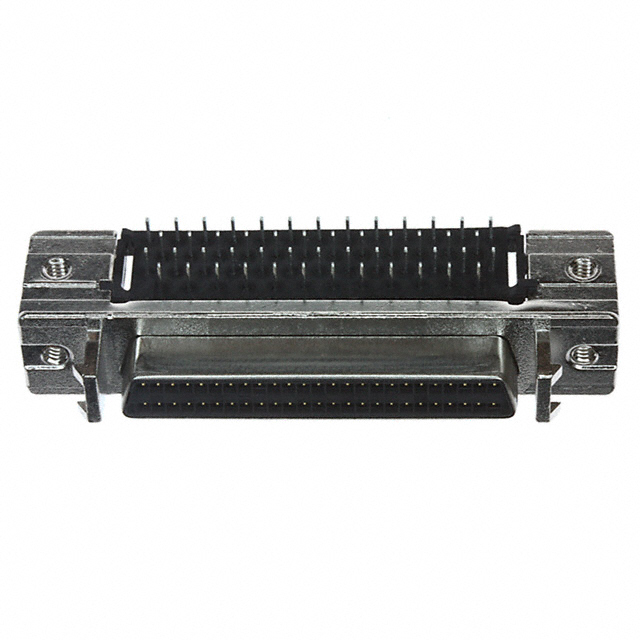

787394-5
ActiveTE Connectivity AMP Connectors
CONN D-TYPE RCPT 50POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
787394-5
ActiveTE Connectivity AMP Connectors
CONN D-TYPE RCPT 50POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 787394-5 | 787394 Series |
|---|---|---|
| Backset Spacing | 3.71 mm | 3.71 mm |
| Backset Spacing | 0.146 in | 0.146 in |
| Color | Black | Black |
| Connector Style | D-Type | D-Type |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish | Gold | Gold |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Type | Signal | Signal |
| Dielectric Material | Thermoplastic | Thermoplastic |
| Features | Shielded | Shielded |
| Flange Feature | Housing/Shell (2-56), Latchblocks | Housing/Shell (2-56), Latchblocks |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Board Edge | Through Hole, Right Angle, Board Edge |
| Number of Positions | 50 | 50 - 80 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel | Nickel Plated, Steel |
| Shell Size, Connector Layout [x] | 0.05 | 0.05 |
| Shell Size, Connector Layout [y] | 0.1 | 0.1 |
| Termination | Solder | Solder |
| Voltage Rating | 30 VDC | 30 VDC |
787394 Series
CONN D-TYPE RCPT 68POS R/A SLDR
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Termination | Mounting Type | Voltage Rating | Number of Rows | Connector Style | Backset Spacing | Backset Spacing | Connector Type | Shell Material, Finish | Material Flammability Rating | Features | Dielectric Material | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [y] | Flange Feature | Number of Positions | Contact Finish | Color | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 787394-7 | 105 ░C | -55 °C | Phosphor Bronze | Solder | Board Edge, Right Angle, Through Hole | 30 VDC | 2 | D-Type | 3.71 mm | 0.146 in | Receptacle, Female Sockets | Nickel Plated, Steel | UL94 V-0 | Shielded | Thermoplastic | 0.05 | 0.1 | Housing/Shell (2-56), Latchblocks | 68 | Gold | Black | Signal |
TE Connectivity AMP Connectors 787394-8 | 105 ░C | -55 °C | Phosphor Bronze | Solder | Board Edge, Right Angle, Through Hole | 30 VDC | 2 | D-Type | 3.71 mm | 0.146 in | Receptacle, Female Sockets | Nickel Plated, Steel | UL94 V-0 | Shielded | Thermoplastic | 0.05 | 0.1 | Housing/Shell (2-56), Latchblocks | 80 | Gold | Black | Signal |
TE Connectivity AMP Connectors 787394-5 | 105 ░C | -55 °C | Phosphor Bronze | Solder | Board Edge, Right Angle, Through Hole | 30 VDC | 2 | D-Type | 3.71 mm | 0.146 in | Receptacle, Female Sockets | Nickel Plated, Steel | UL94 V-0 | Shielded | Thermoplastic | 0.05 | 0.1 | Housing/Shell (2-56), Latchblocks | 50 | Gold | Black | Signal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1680 | $ 6.93 | |
Description
General part information
787394 Series
50 Position D-Type Receptacle, Female Sockets Connector
