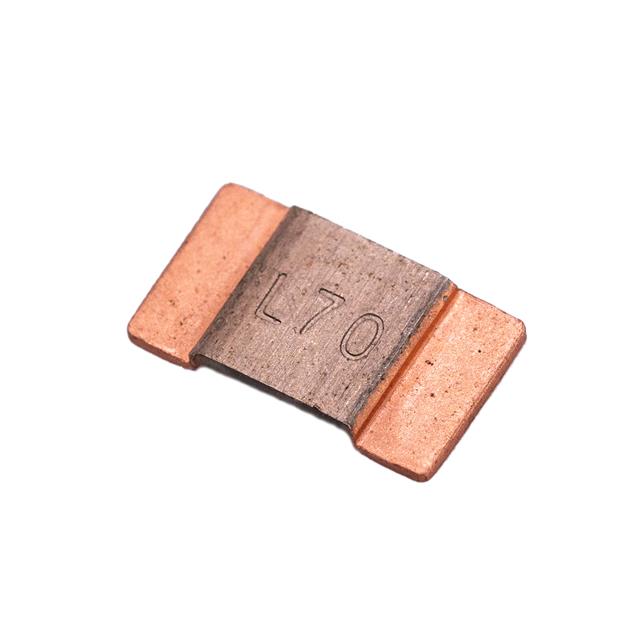

Specification	CHSA5930R0020F

Composition	Metal Element
Features	Moisture Resistant, Automotive AEC-Q200, Current Sense
Height - Seated (Max)	0.039 in
Number of Terminations	2
Operating Temperature (Max)	170 °C
Operating Temperature (Min)	-55 °C
Package / Case	6030 (15075 Metric)
Package Name	5930
Power (Watts)	7 W
Ratings	AEC-Q200
Resistance	2 mOhms
Size / Dimension Length	0.591 in
Size / Dimension Width	0.299 in
Temperature Coefficient	50 ppm/°C
Tolerance	1 %
