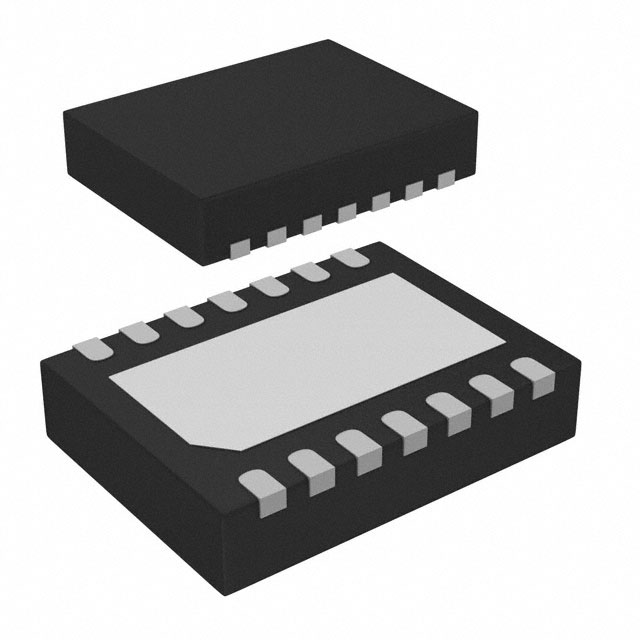

NB632EL-LF-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG BUCK ADJ 4A 14QFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NB632EL-LF-P
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC REG BUCK ADJ 4A 14QFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NB632EL-LF-P |
|---|---|
| Current - Output | 4 A |
| Frequency - Switching | 500 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 C |
| Operating Temperature [Min] | -20 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 14-VFDFN Exposed Pad |
| Supplier Device Package | 14-QFN (3x4) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 24 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output (Max) [Max] | 21.6 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NB632 Series
Buck Switching Regulator IC Positive Adjustable 0.8V 1 Output 4A 14-VFDFN Exposed Pad
