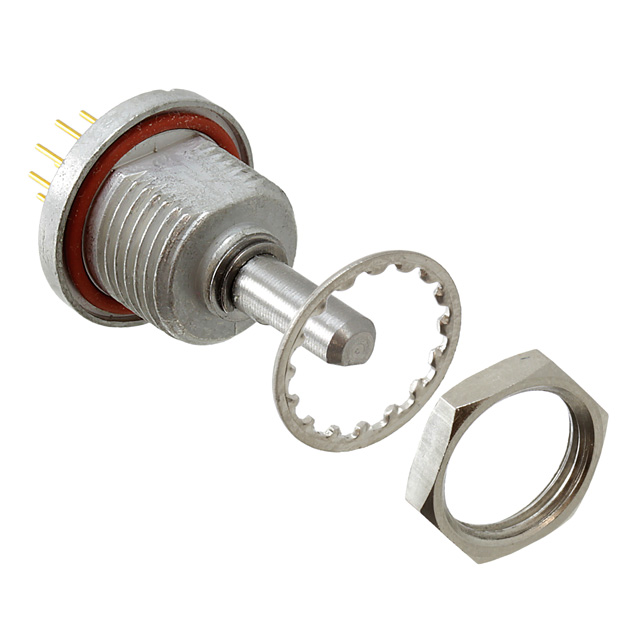

77SP36-01-2-05N
ActiveGrayhill Inc.
SWITCH ROTARY 5POS 50MA 115V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
77SP36-01-2-05N
ActiveGrayhill Inc.
SWITCH ROTARY 5POS 50MA 115V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 77SP36-01-2-05N | 77SP36 Series |
|---|---|---|
| Actuator Length [x] | 7.98 mm | 7.98 mm |
| Actuator Type | Flatted | Flatted |
| Actuator Type [diameter] | 3.17 mm | 3.17 mm |
| Angle of Throw | 36 ° | 36 ° |
| Circuit per Deck | DP5T | SP3T, DP5T, SP8T |
| Contact Finish | Gold | Gold |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) |
| Contact Timing | Non-Shorting | Non-Shorting |
| Current Rating (Amps) | 200 mA, 50 mA | 50 - 200 mA |
| Depth Behind Panel [custom] | 4.57 mm | 4.57 mm |
| Features | Shaft and Panel Sealed | Shaft and Panel Sealed |
| Index Stops | Fixed | Fixed |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Decks [custom] | 1 | 1 |
| Number of Poles per Deck | 2 | 1 - 2 |
| Number of Positions | - | 8 |
| Panel Cutout Dimensions [diameter] | 9.53 mm | 9.53 mm |
| Termination Style | PC Pin | PC Pin |
| Voltage Rating - AC | 115 V | 115 V |
| Voltage Rating - DC | 28 V | 28 V |
77SP36 Series
SWITCH ROTARY 3POS 50MA 115V
| Part | Termination Style | Mounting Type | Number of Decks [custom] | Circuit per Deck | Index Stops | Actuator Type [diameter] | Actuator Type | Contact Finish | Depth Behind Panel [custom] | Number of Poles per Deck | Current Rating (Amps) | Features | Angle of Throw | Voltage Rating - AC | Actuator Length [x] | Voltage Rating - DC | Contact Timing | Panel Cutout Dimensions [diameter] | Contact Material | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. 77SP36-01-1-03N | PC Pin | Panel Mount, Through Hole | 1 | SP3T | Fixed | 3.17 mm | Flatted | Gold | 4.57 mm | 1 | 50 mA, 200 mA | Shaft and Panel Sealed | 36 ° | 115 V | 7.98 mm | 28 V | Non-Shorting | 9.53 mm | Silver Tin Oxide (AgSnO) | |
Grayhill Inc. 77SP36-01-2-05N | PC Pin | Panel Mount, Through Hole | 1 | DP5T | Fixed | 3.17 mm | Flatted | Gold | 4.57 mm | 2 | 50 mA, 200 mA | Shaft and Panel Sealed | 36 ° | 115 V | 7.98 mm | 28 V | Non-Shorting | 9.53 mm | Silver Tin Oxide (AgSnO) | |
Grayhill Inc. 77SP36-01-1-08N | PC Pin | Panel Mount, Through Hole | 1 | SP8T | Fixed | 3.17 mm | Flatted | Gold | 4.57 mm | 1 | 50 mA, 200 mA | Shaft and Panel Sealed | 36 ° | 115 V | 7.98 mm | 28 V | Non-Shorting | 9.53 mm | Silver Tin Oxide (AgSnO) | 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 53.14 | |
| 5 | $ 49.12 | |||
| 10 | $ 45.96 | |||
| 25 | $ 42.22 | |||
| 50 | $ 39.50 | |||
| 100 | $ 37.34 | |||
Description
General part information
77SP36 Series
Rotary Switch 5 Position DP5T 50mA (AC), 200mA (DC) 115 VAC Panel Mount, Through Hole
