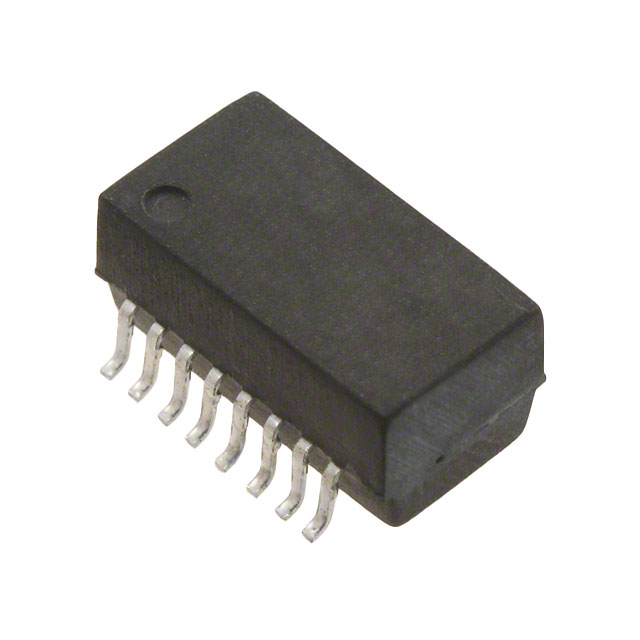

PE-68678NL
ActivePulse Electronics
TRANSFORMER TELECOM DUAL T1/E2
PE-68678NL
ActivePulse Electronics
TRANSFORMER TELECOM DUAL T1/E2
Description
General part information
PE-68678NL
1.2mH, 1.2mH T1/E1 (Dual) Pulse Transformer 1CT:1CT, 1CT:2CT Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | PE-68678NL |
|---|---|
| Height - Seated (Max) | 0.245 in |
| Inductance | 1200 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Size / Dimension Length | 0.505 in |
| Size / Dimension Width | 0.28 in |
| Transformer Type | T1, E1 (Dual) |
| Turns Ratio - Primary:Secondary | 1CT:2CT, 1CT:1CT |
| Weight | 0.09 oz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
