Description
General part information

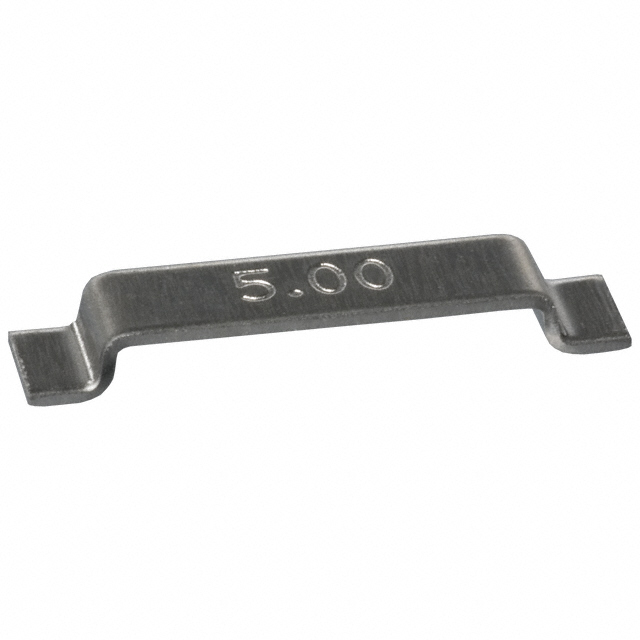

602SJR00500
5 mOhms ±5% 0.25W, 1/4W Chip Resistor Strip, L Bend Current Sense, Flame Proof, Moisture Resistant, Safety Metal Element
Technical Specifications
Parameters and characteristics for this part
| Specification | 602SJR00500 |
|---|---|
| Composition | Metal Element |
| Features | Flame Proof, Current Sense, Safety, Moisture Resistant |
| Height - Seated (Max) | 0.028 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Strip, L Bend |
| Package Name | SMD |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 5 mOhms |
| Size / Dimension Length | 0.551 in |
| Size / Dimension Width | 0.118 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 5 % |
