FERRITE CORE TOROID 4.4UH 76
5976000221
ActiveFair-Rite Products Corp.
FERRITE CORE TOROID 4.4UH 76
Description
General part information
5976000221

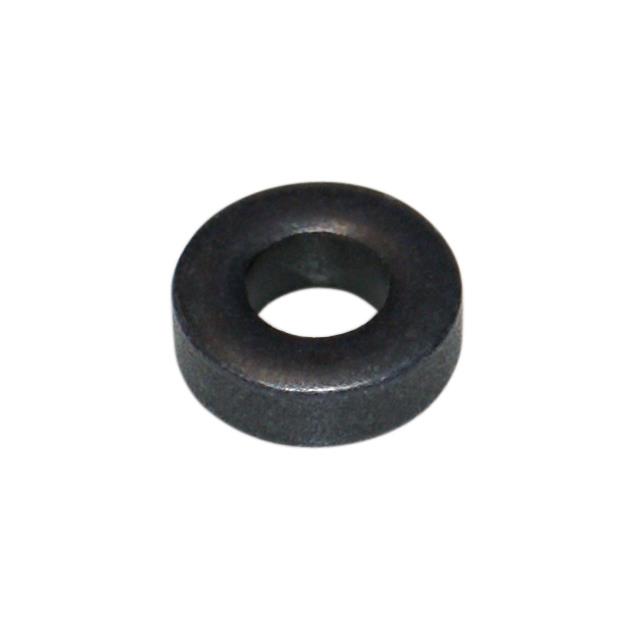

Plastic 76 Ferrite Core Toroid Type Length Width 0.392" (9.95mm) Diameter 0.140" (3.55mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | 5976000221 |
|---|---|
| Core Factor (ΣI/A) mm⁻¹ | 2.855 mm⁻¹ |
| Core Type | Toroid |
| Diameter | 0.392 in |
| Effective Area (Ae) | 7.25 mm² |
| Effective Length (le) | 20.7 mm |
| Effective Magnetic Volume (Ve) | 150 mm³ |
| Finish | Plastic |
| Gap | Ungapped |
| Height | 0.14 in |
| Inductance Factor (Al) | 4.4 µH |
| Initial Permeability (µi) | 10000 |
| Material | 76 |
| Material Temperature Rating | 76 °C |
| Tolerance (Negative) | 35 % |
| Tolerance (Positive) | 30 % |
