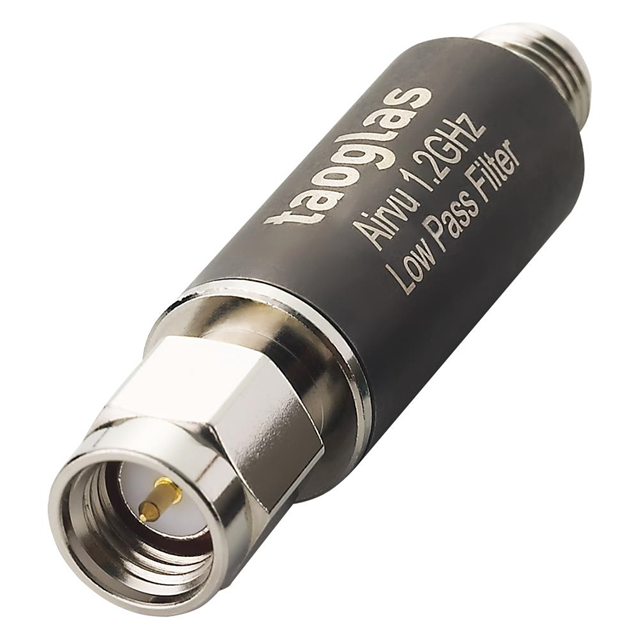

LPF.12.01
ActiveTAOGLAS
RF FILTER LOW PASS 1.2GHZ INLINE
Deep-Dive with AI
Search across all available documentation for this part.
LPF.12.01
ActiveTAOGLAS
RF FILTER LOW PASS 1.2GHZ INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LPF.12.01 |
|---|---|
| Bandwidth | 1.1 GHz |
| Filter Type [custom] | Low Pass |
| Frequency | 1.2 GHz |
| Insertion Loss | 1.1 dB |
| Mounting Type | Free Hanging (In-Line) |
| Package / Case | SMA Connection, Inline, F and M |
| Ripple | 1 mV rms |
| Size / Dimension [diameter] | 10 mm |
| Size / Dimension [diameter] | 0.394 in |
| Size / Dimension [x] | 1.535 in |
| Size / Dimension [x] | 39 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 31.45 | |
| 100 | $ 29.64 | |||
Description
General part information
LPF.12.01
1.2GHz Frequency Low Pass RF Filter (Radio Frequency) 1.1GHz Bandwidth 1.1dB Inline, SMA Connection, F and M
Documents
Technical documentation and resources
No documents available
