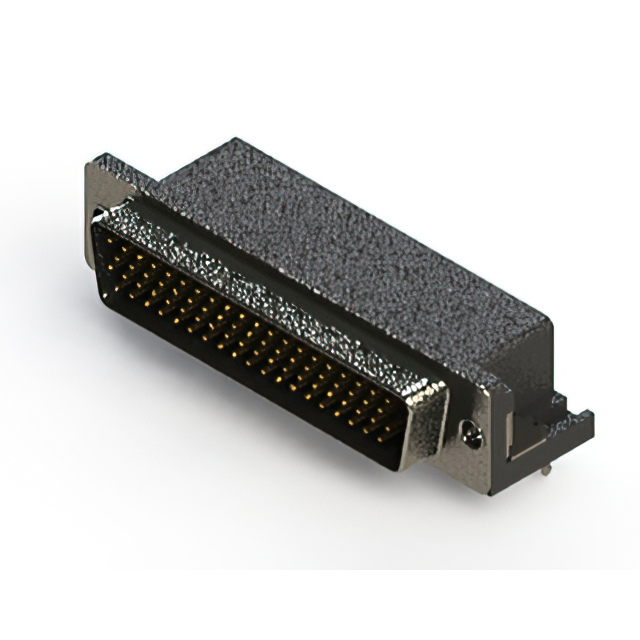

633-078-263-531

Active

EDAC Inc.

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

633-078-263-531

Active

EDAC Inc.

RIGHT ANGLE D-SUB CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	633-078-263-531

Backset Spacing	8.89 mm
Backset Spacing	0.35 in
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets, Grounding Indents, Shielded
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	78
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Termination	Solder

633-078 Series

Part	Dielectric Material	Contact Material	Flange Feature	Contact Type	Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Termination	Material Flammability Rating	Backset Spacing	Backset Spacing	Connector Style	Shell Material, Finish	Current Rating (Amps)	Features	Contact Finish	Mounting Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 633-078-263-531	Polyester Thermoplastic	Copper Alloy	Housing/Shell (Unthreaded)	Signal	Flash	-55 °C	125 °C	78	Solder	UL94 V-0	8.89 mm	0.35 in	D-Sub High Density	Nickel Plated Steel	3 A	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	Board Edge Right Angle Through Hole	Male Pins Plug
EDAC Inc. 633-078-663-035	Polyester Thermoplastic	Copper Alloy	Housing/Shell (M3)	Signal		-55 °C	85 °C	78	Solder	UL94 V-0	8.89 mm	0.35 in	D-Sub High Density	Nickel Plated Steel	3 A	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	Board Edge Right Angle Through Hole	Male Pins Plug	0.76 Ám	30 Áin
EDAC Inc. 633-078-263-532	Polyester Thermoplastic	Copper Alloy	Housing/Shell (4-40)	Signal	Flash	-55 °C	125 °C	78	Solder	UL94 V-0	8.89 mm	0.35 in	D-Sub High Density	Nickel Plated Steel	3 A	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	Board Edge Right Angle Through Hole	Male Pins Plug
EDAC Inc. 633-078-263-031	Polyester Thermoplastic	Copper Alloy	Housing/Shell (Unthreaded)	Signal	Flash	-55 °C	85 °C	78	Solder	UL94 V-0	8.89 mm	0.35 in	D-Sub High Density	Nickel Plated Steel	3 A	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	Board Edge Right Angle Through Hole	Male Pins Plug
EDAC Inc. 633-078-363-035	Polyester Thermoplastic	Copper Alloy	Housing/Shell (M3)	Signal		-55 °C	85 °C	78	Solder	UL94 V-0	8.89 mm	0.35 in	D-Sub High Density	Nickel Plated Steel	3 A	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	Board Edge Right Angle Through Hole	Male Pins Plug	0.38 µm	15 µin
EDAC Inc. 633-078-363-030	Polyester Thermoplastic	Copper Alloy	4-40	Signal		-55 °C	85 °C	78	Solder	UL94 V-0	8.89 mm	0.35 in	D-Sub High Density	Nickel Plated Steel	3 A	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	Board Edge Right Angle Through Hole	Male Pins Plug	0.38 µm	15 µin
EDAC Inc. 633-078-263-032	Polyester Thermoplastic	Copper Alloy	Housing/Shell (4-40)	Signal	Flash	-55 °C	85 °C	78	Solder	UL94 V-0	8.89 mm	0.35 in	D-Sub High Density	Nickel Plated Steel	3 A	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	Board Edge Right Angle Through Hole	Male Pins Plug
EDAC Inc. 633-078-663-530	Polyester Thermoplastic	Copper Alloy	4-40	Signal		-55 °C	125 °C	78	Solder	UL94 V-0	8.89 mm	0.35 in	D-Sub High Density	Nickel Plated Steel	3 A	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	Board Edge Right Angle Through Hole	Male Pins Plug	0.76 Ám	30 Áin
EDAC Inc. 633-078-263-035	Polyester Thermoplastic	Copper Alloy	Housing/Shell (M3)	Signal	Flash	-55 °C	85 °C	78	Solder	UL94 V-0	8.89 mm	0.35 in	D-Sub High Density	Nickel Plated Steel	3 A	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	Board Edge Right Angle Through Hole	Male Pins Plug
EDAC Inc. 633-078-363-033	Polyester Thermoplastic	Copper Alloy	Female Screwlock (4-40) Mating Side	Signal		-55 °C	85 °C	78	Solder	UL94 V-0	8.89 mm	0.35 in	D-Sub High Density	Nickel Plated Steel	3 A	Board Lock Grounding Indents Mounting Brackets Shielded	Gold	Board Edge Right Angle Through Hole	Male Pins Plug	0.38 µm	15 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 15.85
Newark	Each	1	$ 16.13
		1	$ 16.13
		100	$ 13.20
		100	$ 13.20
		250	$ 12.10
		250	$ 12.10
		500	$ 11.17
		500	$ 11.17
		1000	$ 9.51
		1000	$ 9.51

Description

General part information

633-078 Series

78 Position D-Sub, High Density Plug, Male Pins Connector
