6773232322F

Active

DIALIGHT

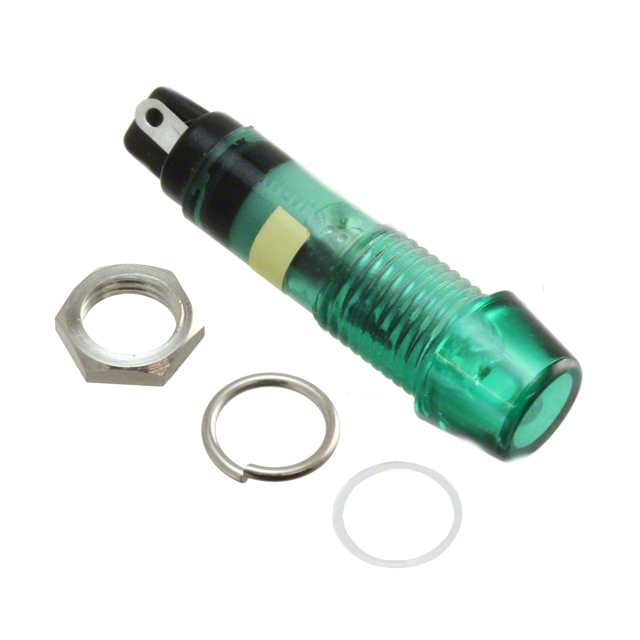

LED PANEL MOUNT INDICATOR UNI-COLOR GREEN 5500MCD 2-PIN

Search across all available documentation for this part.

Active

DIALIGHT

LED PANEL MOUNT INDICATOR UNI-COLOR GREEN 5500MCD 2-PIN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Green 6V 30mA Solder Lug

Technical documentation and resources

No documents available

Specification	6773232322F	6773232 Series

Current	30 mA	30 mA
Ingress Protection	NEMA 4X, IP66	NEMA 4X, IP66
Lamp Color	Green	Green
Millicandela Rating	5500 mcd	5500 - 12000 mcd
Panel Cutout Dimensions	-	7.2 mm
Panel Cutout Dimensions	-	0.28 in
Panel Cutout Dimensions [diameter]	7.11 mm	7.11 mm
Panel Cutout Dimensions [diameter]	0.28 "	0.28 "
Panel Cutout Shape	Round	Round
Ratings	DC	DC
Termination Style	Solder Lug	Solder Lug
Type	LED	LED
Viewing Angle	-	25 °
Voltage	6 V	6 - 24 V
Wavelength - Peak	-	525 nm

Part	Voltage	Ratings	Ingress Protection	Type	Wavelength - Peak	Termination Style	Panel Cutout Dimensions	Panel Cutout Dimensions	Lamp Color	Panel Cutout Shape	Current	Viewing Angle	Millicandela Rating	Panel Cutout Dimensions [diameter]	Panel Cutout Dimensions [diameter]
DIALIGHT 6773232332F	12 V	DC	IP66, NEMA 4X	LED	525 nm	Solder Lug	7.2 mm	0.28 in	Green	Round	30 mA	25 °	12000 mcd
DIALIGHT 6773232342F	24 V	DC	IP66, NEMA 4X	LED	525 nm	Solder Lug	7.2 mm	0.28 in	Green	Round	30 mA	25 °	12000 mcd
DIALIGHT 6773232322F	6 V	DC	IP66, NEMA 4X	LED		Solder Lug			Green	Round	30 mA		5500 mcd	7.11 mm	0.28 "
