Description
General part information

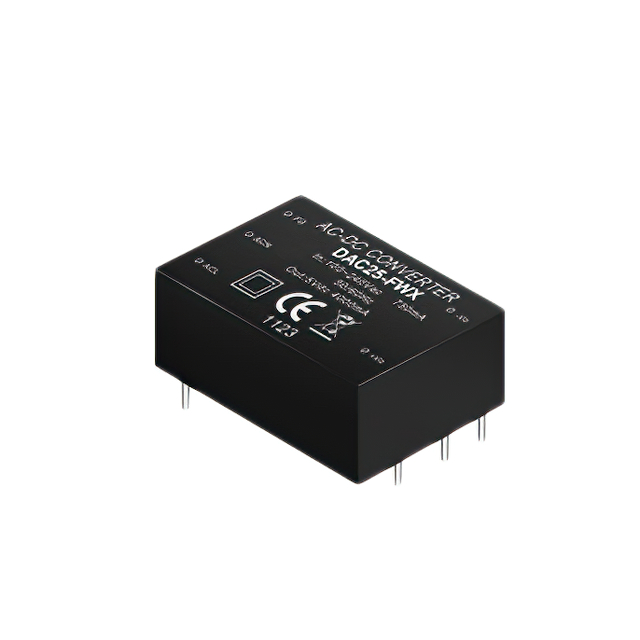

DAC25-16
Enclosed AC DC Converters 1 Output 16V 1.56A 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | DAC25-16 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, UL |
| Current - Output (Max) | 1.56 A |
| Efficiency | 82 % |
| Features | Universal Input |
| Line Regulation | 1 % |
| Load Regulation (Percent) | 2 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -20 °C |
| Package Leads | 5 Leads |
| Package Name | 6-DIP Module |
| Power (Watts) | 25 W |
| Size / Dimension Height | 1 in |
| Size / Dimension Length | 3 in |
| Size / Dimension Width | 2 in |
| Standard Number | 62368-1 |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output 1 | 16 V |
