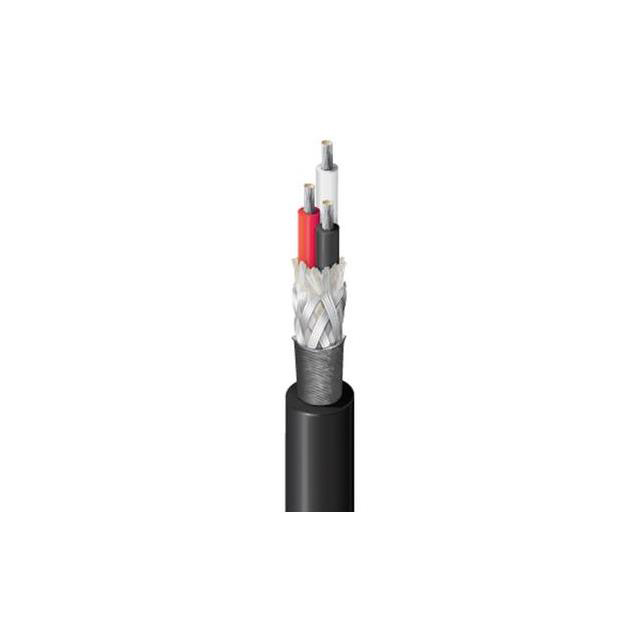

8423 010500

Active

Belden Inc.

3 #20 EPDM BRD EPDM

Search across all available documentation for this part.

Active

Belden Inc.

3 #20 EPDM BRD EPDM

Technical Specifications

Parameters and characteristics for this part

Specification	8423 010500

Cable Type	Microphone
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG, 26
Jacket (Insulation) Diameter [diameter]	0.272 in
Jacket (Insulation) Diameter [diameter]	6.91 mm
Jacket (Insulation) Material	Ethylene Propylene Terpolymer Rubber (EPDM)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Black
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	3
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-50 °C
Shield Coverage	83 %
Shield Material	Viscose; Copper, Tinned
Shield Type	Double Braid
Usage	Audio
Voltage	600 V
Wire Gauge	20 AWG

Part	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Number of Conductors	Conductor Insulation	Conductor Material	Cable Type	Shield Coverage	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Voltage	Usage	Shield Type	Conductor Strand	Shield Material	Length	Length
Belden Inc. 8423 010500	Black	0.04 in	1.016 mm	Ethylene Propylene Terpolymer Rubber (EPDM)	3	Ethylene Propylene Terpolymer Rubber (EPDM)	Copper Tinned	Microphone	83 %	500 '	152.4 m	90 °C	-50 °C	0.272 in	6.91 mm	20 AWG	600 V	Audio	Double Braid	26 34 AWG	Viscose; Copper Tinned
Belden Inc. 8423 0101000	Black	0.04 in	1.016 mm	Ethylene Propylene Terpolymer Rubber (EPDM)	3	Ethylene Propylene Terpolymer Rubber (EPDM)	Copper Tinned	Microphone	83 %			90 °C	-50 °C	0.272 in	6.91 mm	20 AWG	600 V		Braid	26 34 AWG	Copper Tinned	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 4.37

General part information

3 Conductor Microphone Cable Black 20 AWG Double Braid 500.0' (152.4m)
