800-12-32D-RE-0003F
ObsoleteCnC Tech, LLC
CORD 12AWG IEC320C20 - 320C19 3'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
800-12-32D-RE-0003F
ObsoleteCnC Tech, LLC
CORD 12AWG IEC320C20 - 320C19 3'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 800-12-32D-RE-0003F |
|---|---|
| 1st Connector | IEC 320-C20 |
| 2nd Connector | IEC 320-C19 |
| Approval Agency Marking | CSA, cUL, UL |
| Approved Countries | United States, Canada |
| Color | Red |
| Cord Type | SJT |
| Current Rating (Amps) | 20 A |
| Length | 91.44 cm |
| Length [x] | 3 ft |
| Number of Conductors | 3 |
| Operating Temperature | 105 C |
| Shielding | Unshielded |
| Style | Male Pins, Female Sockets |
| Voltage Rating | 250 VDC |
| Wire Gauge | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.62 | |
| 10 | $ 17.43 | |||
| 25 | $ 15.78 | |||
| 50 | $ 14.66 | |||
Description
General part information
800-12-32D-RE-0003F

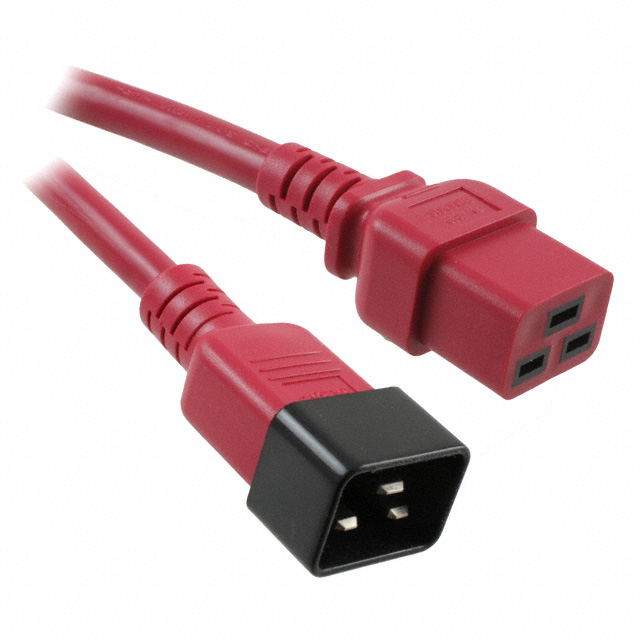

3.00' (914.4mm) Power Cord Red IEC 320-C20 To IEC 320-C19 SJT
