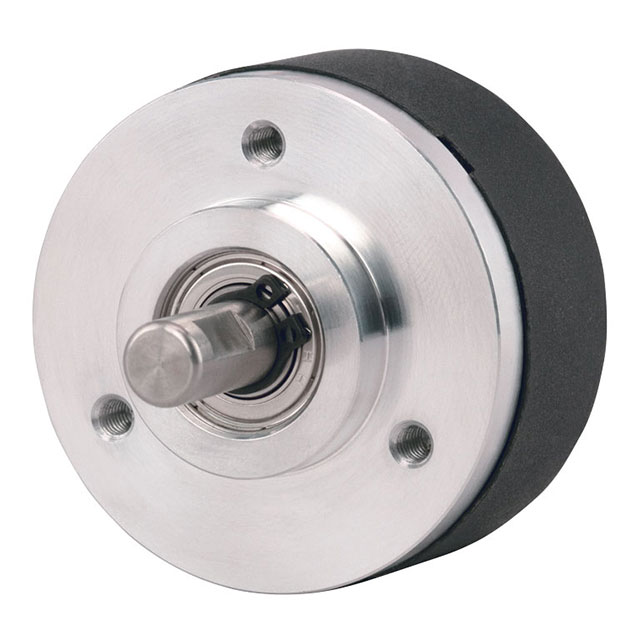

15S-20M1-0100NV1ROC-M00
ActiveEncoder Products Company
1.5" DIA INCREMENTAL ENCODER 6MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
15S-20M1-0100NV1ROC-M00
ActiveEncoder Products Company
1.5" DIA INCREMENTAL ENCODER 6MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 15S-20M1-0100NV1ROC-M00 | 15S-20M1 Series |
|---|---|---|
| Actuator Type | Shaft | Shaft |
| Built in Switch | False | False |
| Detent | False | False |
| Encoder Type | Incremental | Incremental |
| Mounting Type | Servo Mount | Servo Mount |
| Orientation | User Selectable | User Selectable |
| Output Type | Open Collector | Open Collector |
| Pulses per Revolution | 100 | 100 - 8192 |
| Rotational Life (Cycles Min) [Min] | 12B | 12B |
| Termination Style | Cable | Cable |
| Voltage - Supply [Max] | 28 V | 28 V |
| Voltage - Supply [Min] | 5 V | 5 V |
15S-20M1 Series
1.5" DIA INCREMENTAL ENCODER 6MM
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Built in Switch | Orientation | Output Type | Mounting Type | Actuator Type | Detent | Pulses per Revolution | Encoder Type | Termination Style | Rotational Life (Cycles Min) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Encoder Products Company 15S-20M1-0200NV1ROC-M00 | 5 V | 28 V | User Selectable | Open Collector | Servo Mount | Shaft | 200 | Incremental | Cable | 12B | ||
Encoder Products Company 15S-20M1-0100NV1ROC-M00 | 5 V | 28 V | User Selectable | Open Collector | Servo Mount | Shaft | 100 | Incremental | Cable | 12B | ||
Encoder Products Company 15S-20M1-1000NV1ROC-M00 | 5 V | 28 V | User Selectable | Open Collector | Servo Mount | Shaft | 1000 | Incremental | Cable | 12B | ||
Encoder Products Company 15S-20M1-10000NV1ROC-M00 | 5 V | 28 V | User Selectable | Open Collector | Servo Mount | Shaft | 1000 | Incremental | Cable | 12B | ||
Encoder Products Company 15S-20M1-4096NV1ROC-M00 | 5 V | 28 V | User Selectable | Open Collector | Servo Mount | Shaft | 4096 | Incremental | Cable | 12B | ||
Encoder Products Company 15S-20M1-8192NV1ROC-M00 | 5 V | 28 V | User Selectable | Open Collector | Servo Mount | Shaft | 8192 | Incremental | Cable | 12B | ||
Encoder Products Company 15S-20M1-3600NV1ROC-M00 | 5 V | 28 V | User Selectable | Open Collector | Servo Mount | Shaft | 3600 per revolution | Incremental | Cable | 12B | ||
Encoder Products Company 15S-20M1-1024NV1ROC-M00 | 5 V | 28 V | User Selectable | Open Collector | Servo Mount | Shaft | 1024 | Incremental | Cable | 12B | ||
Encoder Products Company 15S-20M1-0600NV1ROC-M00 | 5 V | 28 V | User Selectable | Open Collector | Servo Mount | Shaft | 600 | Incremental | Cable | 12B | ||
Encoder Products Company 15S-20M1-2500NV1ROC-M00 | 5 V | 28 V | User Selectable | Open Collector | Servo Mount | Shaft | 2500 | Incremental | Cable | 12B |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 285.00 | |
Description
General part information
15S-20M1 Series
Rotary Encoder Incremental 100 Open Collector User Selectable
