XREGRN-L1-0000-00P03

Obsolete

Cree LED

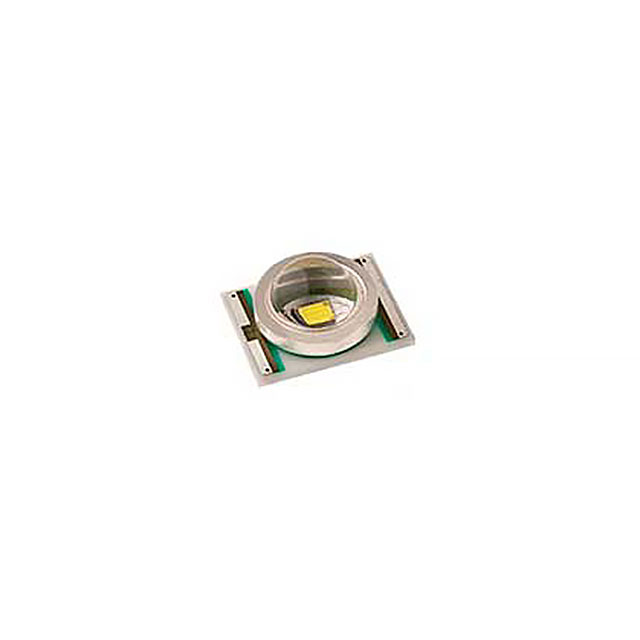

LED XLAMP XRE GREEN 530NM SMD

Search across all available documentation for this part.

Obsolete

Cree LED

LED XLAMP XRE GREEN 530NM SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XREGRN-L1-0000-00P03	XREGRN Series

Color	Green	Green
Current - Max [Max]	700 mA	700 mA
Current - Test	350 mA	350 mA
Height - Seated (Max) [Max] [z]	0.181 "	0.181 "
Height - Seated (Max) [Max] [z]	4.6 mm	4.6 mm
Lumens/Watt @ Current - Test	67 lm/W	67 lm/W
Luminous Flux @ Current/Temperature	77 lm	77 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	9073 Metric	9073 Metric
Package / Case	3529	3529
Size / Dimension [x]	9 mm	9 mm
Size / Dimension [x]	0.354 "	0.354 "
Size / Dimension [y]	7 mm	7 mm
Size / Dimension [y]	0.276 in	0.276 in
Supplier Device Package	SMD	SMD
Thermal Resistance of Package [custom]	8 °C/W	8 °C/W
Viewing Angle	100 °	100 °
Voltage - Forward (Vf) (Typ)	3.3 V	3.3 V
Wavelength	530 nm	525 - 530 nm
Wavelength	-	520 nm
Wavelength	-	535 nm

LED XLAMP XRE GREEN 525NM SMD

Part	Lumens/Watt @ Current - Test	Current - Test	Supplier Device Package	Viewing Angle	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Wavelength	Luminous Flux @ Current/Temperature	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Current - Max [Max]	Package / Case	Package / Case	Thermal Resistance of Package [custom]	Mounting Type	Voltage - Forward (Vf) (Typ)	Color	Wavelength [Min]	Wavelength [Max]
Cree LED XREGRN-L1-R250-00P02	67 lm/W	350 mA	SMD	100 °	0.181 "	4.6 mm	525 nm	77 lm	7 mm	0.276 in	9 mm	0.354 "	700 mA	9073 Metric	3529	8 °C/W	Surface Mount	3.3 V	Green
Cree LED XREGRN-L1-0000-00P03	67 lm/W	350 mA	SMD	100 °	0.181 "	4.6 mm	530 nm	77 lm	7 mm	0.276 in	9 mm	0.354 "	700 mA	9073 Metric	3529	8 °C/W	Surface Mount	3.3 V	Green
Cree LED XREGRN-L1-R250-00P01	67 lm/W	350 mA	SMD	100 °	0.181 "	4.6 mm	528 nm	77 lm	7 mm	0.276 in	9 mm	0.354 "	700 mA	9073 Metric	3529	8 °C/W	Surface Mount	3.3 V	Green	520 nm	535 nm
Cree LED XREGRN-L1-0000-00P02	67 lm/W	350 mA	SMD	100 °	0.181 "	4.6 mm	525 nm	77 lm	7 mm	0.276 in	9 mm	0.354 "	700 mA	9073 Metric	3529	8 °C/W	Surface Mount	3.3 V	Green
Cree LED XREGRN-L1-0000-00P01	67 lm/W	350 mA	SMD	100 °	0.181 "	4.6 mm	528 nm	77 lm	7 mm	0.276 in	9 mm	0.354 "	700 mA	9073 Metric	3529	8 °C/W	Surface Mount	3.3 V	Green	520 nm	535 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color XLamp® XR-E Green 530nm (525nm ~ 535nm) 3529 (9073 Metric)
