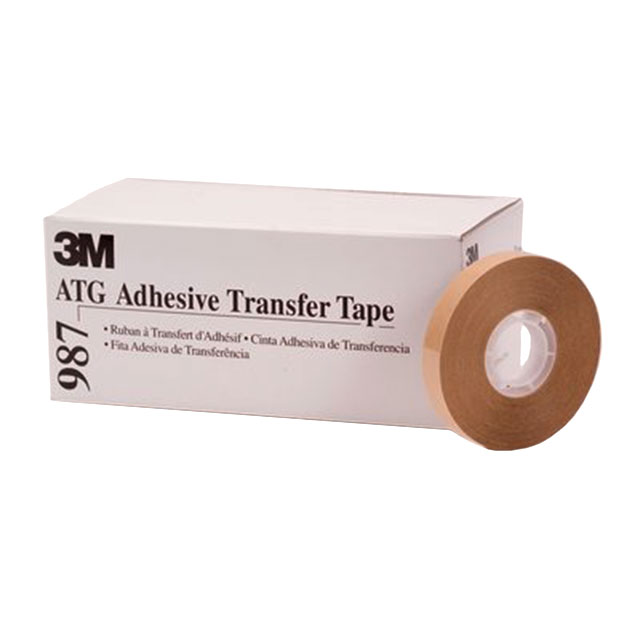

987-1/2-36YD

Active

3M (TC)

TAPE ADHSV TRNSFR CLR 1/2"X36YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE ADHSV TRNSFR CLR 1/2"X36YDS

Technical Specifications

Parameters and characteristics for this part

Specification	987-1/2-36YD

Adhesive	Acrylic, 400
Backing, Carrier	Densified Kraft
Color	Clear
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Tape Type	Adhesive Transfer
Temperature Range [Max]	38 °C
Temperature Range [Max]	100 °F
Temperature Range [Min]	21 °C
Temperature Range [Min]	70 °F
Thickness	5.2 mils
Thickness	0.132 mm
Thickness	0.0052 "
Thickness - Adhesive	0.0017 in
Thickness - Adhesive	1.7 mils
Thickness - Adhesive	0.043 mm
Thickness - Backing, Carrier	3.5 mils
Thickness - Backing, Carrier	0.089 mm
Thickness - Backing, Carrier	0.0035 in
Usage	General Purpose
Width	0.5 in
Width	12.7 mm
Width	0.5 in

Part	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shelf Life Start	Backing, Carrier	Color	Adhesive	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Tape Type	Thickness	Thickness	Thickness	Usage	Length	Length	Length	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Shelf Life	Width	Width	Width
3M (TC) 987-1/2-36YD	0.0017 in	1.7 mils	0.043 mm	70 °F	21 °C	Date of Manufacture	Densified Kraft	Clear	Acrylic 400	38 °C	21 °C	100 °F	70 °F	Adhesive Transfer	5.2 mils	0.132 mm	0.0052 "	General Purpose	36 yd	32.9 m	108 ft	3.5 mils	0.089 mm	0.0035 in	18 Months	0.5 in	12.7 mm	0.5 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	12	$ 7.15

General part information

Adhesive Transfer Tape Acrylic, 400 Adhesive Clear 0.50" (12.70mm) 1/2" X 108' (32.9m) 36 yds
