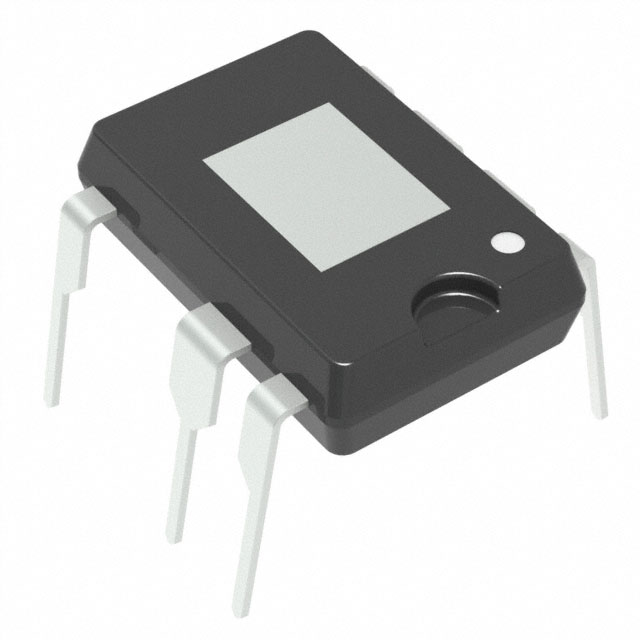

HF900GPR
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC OFFLINE SWITCH FLYBACK 8DIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HF900GPR
ActiveMONOLITHIC POWER SYSTEMS (MPS)
IC OFFLINE SWITCH FLYBACK 8DIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HF900GPR |
|---|---|
| Control Features | Soft Start |
| Fault Protection | Over Temperature, Short Circuit, Over Voltage |
| Frequency - Switching | 300 kHz |
| Internal Switch(s) | True |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Isolation | Isolated |
| Package / Case | Exposed Pad, 8-DIP |
| Package / Case | 0.3 in, 7 Leads |
| Package / Case | 7.62 mm |
| Power (Watts) | 1.45 W |
| Supplier Device Package | 8-PDIP-7EP |
| Topology | Flyback |
| Voltage - Breakdown | 900 V |
| Voltage - Supply (Vcc/Vdd) [Max] | 24.5 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 10.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1500 | $ 1.38 | |
Description
General part information
HF900GPR
Converter Offline Flyback Topology 300kHz 8-PDIP-7EP
