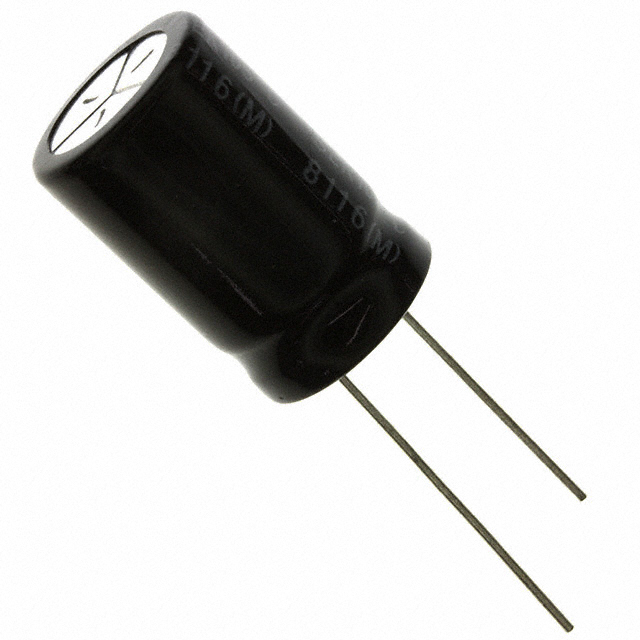

Specification	SEK102M050ST

Applications	General Purpose
Capacitance	1000 µF
ESR (Equivalent Series Resistance)	160 mOhm
Height - Seated (Max)	0.984 in
Lead Spacing	0.295 in
Lifetime	2000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Package / Case	Can, Radial
Size / Dimension Diameter	0.63 in
Tolerance	20 %
Voltage - Rated	50 V
