ATS-PCB1027

ATS-PCB1027

Obsolete
Advanced Thermal Solutions Inc.

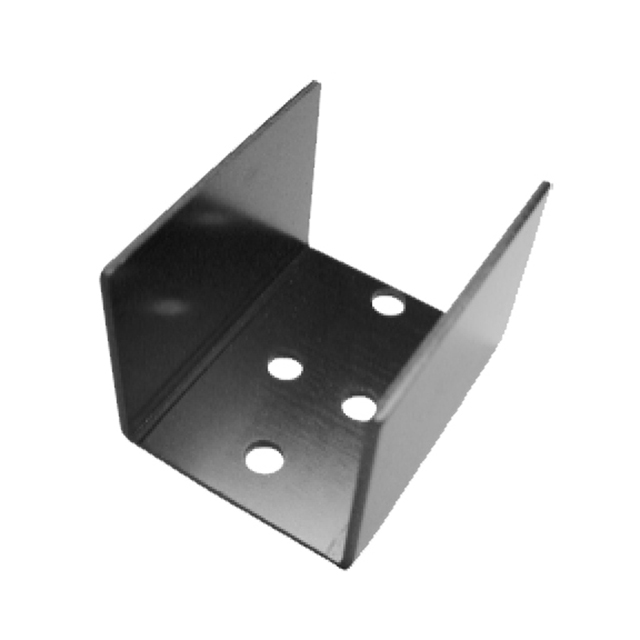

HEATSINK TO-3 BLACK

Find alt
ATS-PCB1027

ATS-PCB1027

Obsolete
Advanced Thermal Solutions Inc.

HEATSINK TO-3 BLACK

Find alt

Description

General part information

ATS-PCB1027

Heat Sink TO-220 Aluminum Board Level

Technical Specifications

Parameters and characteristics for this part

SpecificationATS-PCB1027
Attachment MethodBolt On
Fin Height1.522 in
Length2.1 in
MaterialAluminum
Material FinishBlack Anodized
Package CooledTO-220
ShapeFins, Rectangular
Thermal Resistance10 °C/W, 6 °C/W
TypeBoard Level
Width1.68 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ATS-PCB1027 | Datasheet
