237-102
ActiveWAGO Corporation
PCB TERMINAL BLOCK; 2.5 MM; PIN
237-102
ActiveWAGO Corporation
PCB TERMINAL BLOCK; 2.5 MM; PIN
Description
General part information
237-102

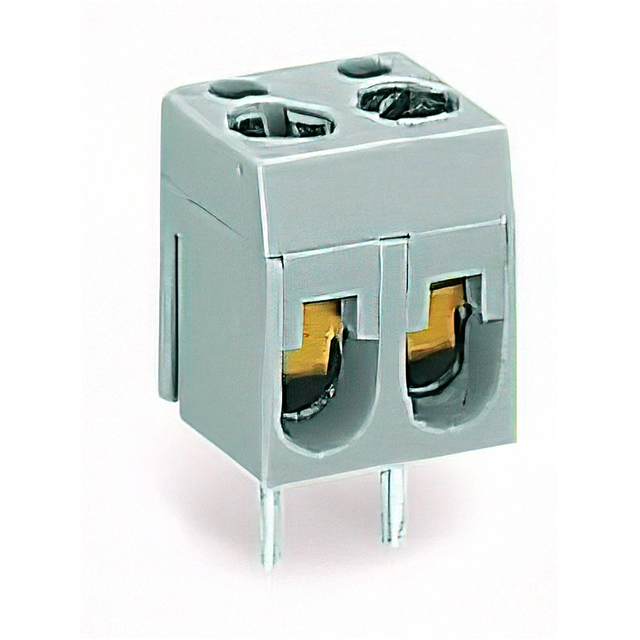

2 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 237-102 |
|---|---|
| Clamp Material | Steel |
| Clamp Plating | Nickel Plated |
| Color | Gray |
| Contact Material | Electrolytic Copper |
| Housing Material | Nylon 6/6, Polyamide, PA66 |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -60 °C |
| Pitch | 0.197 in |
| Plating | Tin Plated |
| Positions Per Level | 2 |
| Wire Gauge (AWG) (Max) | 20.5 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
| Wire Termination | Screw |
