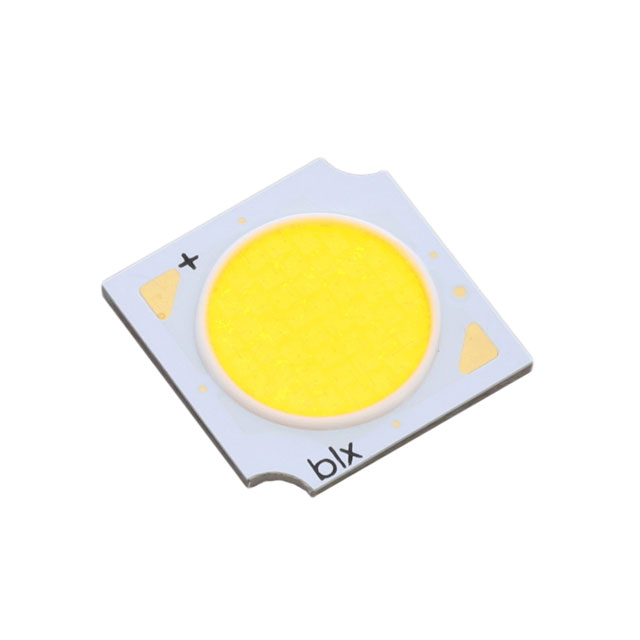

Specification	BXRE-40E1000-C-83

CCT (K)	4000 K
CCT Description	3-Step MacAdam Ellipse
Color	White, Neutral
Configuration	Square
CRI (Color Rendering Index)	80
Current - Test	300 mA
Lens Type	Flat
Light Emitting Surface (LES) Diameter	10 mm
Lumens/Watt	182 lm/W
Luminous Flux (Typical)	1688 lm
Temperature - Test	25 °C
Type	Chip On Board (COB)
Voltage - Forward (Vf) (Typ)	30.7 V

BXRE-40 Series

...

Part	Lumens/Watt	Voltage - Forward (Vf) (Typ)	Current - Max	Type	Lens Type	Current - Test	Size / Dimension Width	Size / Dimension Length	Temperature - Test	CRI (Color Rendering Index)	Configuration	Color	Light Emitting Surface (LES) Diameter	Height	Luminous Flux (Typical)	Viewing Angle	CCT (K)	CCT Description
BRIDGELUX BXRE-40E0800-A-23	124 lm/W	34.6 V	350 mA	Chip On Board (COB)	Flat	175 mA	12.5 mm	12.5 mm	85 °C	80	Square	Neutral White	8.1 mm	1.7 mm	749 lm	120 °	4000 K	3-Step MacAdam Ellipse
BRIDGELUX BXRE-40G0800-D-72	125 lm/W	16.7 V	700 mA	Chip On Board (COB)	Flat	350 mA	12.5 mm	12.5 mm	85 °C	90	Square	Neutral White	8.1 mm	1.7 mm	730 lm	120 °	4000 K	2-Step MacAdam Ellipse
BRIDGELUX BXRE-40E1000-B-72	143 lm/W	33.8 V	540 mA	Chip On Board (COB)	Flat	270 mA	13.5 mm	13.5 mm	85 °C	80	Square	Neutral White	10.2 mm	1.7 mm	1315 lm	120 °	4000 K	2-Step MacAdam Ellipse
BRIDGELUX BXRE-40G1000-B-73	122 lm/W	34 V	540 mA	Chip On Board (COB)	Flat	270 mA	13.5 mm	13.5 mm	85 °C	90	Square	Neutral White	10.2 mm	1.7 mm	1125 lm		4000 K	3-Step MacAdam Ellipse
BRIDGELUX BXRE-40E0800-A-03	124 lm/W	35.6 V	350 mA	Chip On Board (COB)	Flat	175 mA	12.5 mm	12.5 mm	25 °C	80	Square	Neutral White	8.1 mm	1.7 mm	770 lm	120 °	4000 K	3-Step MacAdam Ellipse
BRIDGELUX BXRE-40E6500-C-72	149 lm/W 153 lm/W	50.7 V	2.88 A	Chip On Board (COB)	Flat	1.44 A	28 mm	28 mm	85 °C	80	Square	Neutral White	22.6 mm	1.7 mm	10885 lm 11176 lm	120 °	4000 K	2-Step MacAdam Ellipse
BRIDGELUX BXRE-40E2000-C-73	148 lm/W 153 lm/W	33.9 V	1.26 A	Chip On Board (COB)	Flat	630 mA	19 mm	19 mm	85 °C	80	Square	Neutral White	14 mm	1.7 mm	3170 lm 3267 lm	120 °	4000 K	3-Step MacAdam Ellipse
BRIDGELUX BXRE-40E1000-B-73	143 lm/W	34 V	540 mA	Chip On Board (COB)	Flat	270 mA	13.5 mm	13.5 mm	85 °C	80	Square	Neutral White	10.2 mm	1.7 mm	1315 lm		4000 K	3-Step MacAdam Ellipse
BRIDGELUX BXRE-40G3001-D-23	112 lm/W	36 V	1.4 A	Chip On Board (COB)	Flat	700 mA	21 mm	21 mm	25 °C	90	Square	Neutral White	15.2 mm	1.7 mm	2822 lm	120 °	4000 K	3-Step MacAdam Ellipse
BRIDGELUX BXRE-40E0400-C-83	177 lm/W	33.7 V	250 mA	Chip On Board (COB)	Flat	80 mA	12.5 mm	12.5 mm	25 °C	80	Square	Neutral White	6.3 mm	1.65 mm	478 lm	120 °	4000 K	3-Step MacAdam Ellipse
