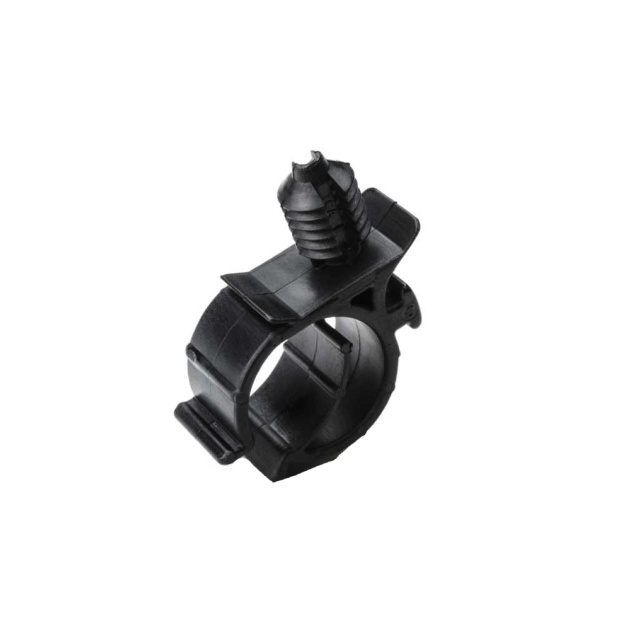

Specification	151-00783

Color	Black
Features	Heat Stabilized, Impact Resistant
Height	0.73 in
Length	1.13 in
Material	Nylon 6, 6, Polyamide (PA66)
Mounting Type	Fir Tree
Opening Size (Max)	0.59 in
Opening Size (Min)	0.43 in
Panel Hole Size (Max)	0.28 in
Panel Hole Size (Min)	0.25 in
Panel Thickness (Max)	0.04 in
Panel Thickness (Min)	0.03 in
Type	Clip, C-Type
Type Attributes	Open
Width	0.433 in

151-00 Series

Cable Tie Mounts H-Mount for 0.625" standard bolts and Huck-Spin bolts, PA66HIRHSUV, Black,

Part	Shelf Life Start	Shelf Life	Mounting Type	Color	Material	Type	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	For Use With/Related Products	Panel Thickness (Min)	Panel Thickness (Max)	Height	Features	Length	Panel Hole Shape	Panel Hole Size	Width	Panel Hole Size (Min)	Panel Hole Size (Max)	Material Flammability Rating	Type Attributes	Opening Size (Min)	Opening Size (Max)	Bundle Center to Mounting Center	Type Attributes Angle
HELLERMANNTYTON 151-00433	Date of Manufacture	12 Months	Adhesive Heavy Bonding	Black	Nylon	Quad Opening	1.1 in	0.19 in	1.1 in	T18 - T50 Cable Ties
HELLERMANNTYTON 151-00925			Cupped Fir Tree	Black	6 Nylon 6 Polyamide (PA66)	Clip Connector					0.024 in	0.236 in	0.281 in	Heat Stabilized Impact Resistant UV Resistant	1.155 in	Oval	Multiple Oval Hole Sizes	0.694 in
HELLERMANNTYTON 151-00980			Arrowhead	Black	6 Nylon 6 Polyamide (PA66)	Clip Connector
HELLERMANNTYTON 151-00194			Arrowhead	Black	6 Nylon 6 Polyamide (PA66)	Clip Connector					0.8 in	0.31 in	0.69 in	Heat Stabilized Impact Resistant	0.63 in				0.28 in	0.47 in	UL94 HB
HELLERMANNTYTON 151-00161			Clip On Edge Mount	Black	6 Nylon 6 Polyamide (PA66)	C-Type Clip					0.04 in	0.12 in		Heat Stabilized Impact Resistant							UL94 HB	Locking	0.59 in	0.87 in
HELLERMANNTYTON 151-00077			Arrowhead	Black	6 Nylon 6 Polyamide (PA66)	Bundling Clip					0.03 in	0.06 in	0.3 in		2 in				0.25 in	0.276 in	UL94 V-2
HELLERMANNTYTON 151-00903			Fir Tree	Natural	6 Nylon 6 Polyamide (PA66)	Bundling Clip					0.024 in	0.226 in		Heat Stabilized Impact Resistant UV Resistant	2.283 in			0.374 in	0.24 in	0.272 in	UL94 HB	Standoff			1.707 in
HELLERMANNTYTON 151-00993			Cupped Fir Tree	Black	6 Nylon 6 Polyamide (PA66)	Bundling Channel					0.02 in	0.23 in	1.031 in	Heat Stabilized Impact Resistant					0.24 in	0.27 in						90 °
HELLERMANNTYTON 151-00932			Cupped Fir Tree	Natural	6 Nylon 6 Polyamide (PA66)	Bundling Clip					0.024 in	0.266 in	0.285 in	Heat Stabilized Impact Resistant UV Resistant	1.976 in	Oval		0.374 in	0.256 in	0.492 in	UL94 HB	Standoff			0.831 in
HELLERMANNTYTON 151-00174			Clip On Edge Mount	Black	6 Nylon 6 Polyamide (PA66)	Clip Wire Saddle					0.039 in	0.118 in		Impact Resistant							UL94 HB	Hinged Round	0.602 in	0.626 in
