A7SSB-3706G
ActiveTE Connectivity AMP Connectors
CABLE D-SUB-AFM37B/AE37G/AFM37B
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A7SSB-3706G | A7SSB Series |
|---|---|---|
| 1st Connector | Receptacle, Female Sockets | Receptacle, Female Sockets |
| 2nd Connector | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Color | - | Ribbon, Multiple |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Length | 6 ft | 6 - 10 ft |
| Length | 1.83 m | 1.83 - 3.05 m |
| Number of Positions | 37 | 9 - 50 |
| Shielding | Unshielded | Unshielded |
| Type | DB37 | DB15, DB37, DB50, DB25, DB9 |
| Usage | Patch | Patch |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 35.12 | |
| 10 | $ 29.11 | |||
| 25 | $ 27.02 | |||
| 50 | $ 25.54 | |||
| 100 | $ 24.15 | |||
| 250 | $ 22.44 | |||
A7SSB Series
CABLE D-SUB-AFM15B/AE15G/AFM15B
| Part | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Shielding | Length | Length | Type | 1st Connector | 2nd Connector | Contact Finish | Usage | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A7SSB-1506G | 15 | 0.76 Ám | 30 Áin | Unshielded | 6 ft | 1.83 m | DB15 | Female Sockets, Receptacle | Receptacle, Female Sockets | Gold | Patch | |
TE Connectivity AMP Connectors A7SSB-3706M | 37 | 0.76 Ám | 30 Áin | Unshielded | 6 ft | 1.83 m | DB37 | Female Sockets, Receptacle | Receptacle, Female Sockets | Gold | Patch | Multiple, Ribbon |
TE Connectivity AMP Connectors A7SSB-5006M | 50 | 0.76 Ám | 30 Áin | Unshielded | 6 ft | 1.83 m | DB50 | Female Sockets, Receptacle | Receptacle, Female Sockets | Gold | Patch | Multiple, Ribbon |
TE Connectivity AMP Connectors A7SSB-1510M | 15 | 0.76 Ám | 30 Áin | Unshielded | 10 ft | 3.05 m | DB15 | Female Sockets, Receptacle | Receptacle, Female Sockets | Gold | Patch | Multiple, Ribbon |
TE Connectivity AMP Connectors A7SSB-3710M | 37 | 0.76 Ám | 30 Áin | Unshielded | 10 ft | 3.05 m | DB37 | Female Sockets, Receptacle | Receptacle, Female Sockets | Gold | Patch | Multiple, Ribbon |
TE Connectivity AMP Connectors A7SSB-2510M | 0.76 Ám | 30 Áin | Unshielded | 10 ft | 3.05 m | DB25 | Female Sockets, Receptacle | Receptacle, Female Sockets | Gold | Patch | Multiple, Ribbon | |
TE Connectivity AMP Connectors A7SSB-1506M | 15 | 0.76 Ám | 30 Áin | Unshielded | 6 ft | 1.83 m | DB15 | Female Sockets, Receptacle | Receptacle, Female Sockets | Gold | Patch | Multiple, Ribbon |
TE Connectivity AMP Connectors A7SSB-0906M | 9 | 0.76 Ám | 30 Áin | Unshielded | 6 ft | 1.83 m | DB9 | Female Sockets, Receptacle | Receptacle, Female Sockets | Gold | Patch | Multiple, Ribbon |
TE Connectivity AMP Connectors A7SSB-5006G | 50 | 0.76 Ám | 30 Áin | Unshielded | 6 ft | 1.83 m | DB50 | Female Sockets, Receptacle | Receptacle, Female Sockets | Gold | Patch | |
TE Connectivity AMP Connectors A7SSB-3706G | 37 | 0.76 Ám | 30 Áin | Unshielded | 6 ft | 1.83 m | DB37 | Female Sockets, Receptacle | Receptacle, Female Sockets | Gold | Patch |
Description
General part information
A7SSB Series

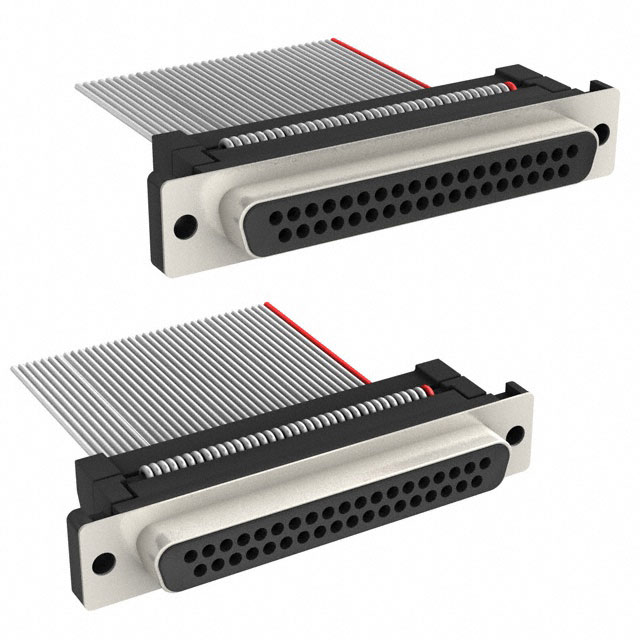

D-Sub Cable Assembly DB37 Gray, Ribbon 6.00' (1.83m) Receptacle, Female Sockets to Receptacle, Female Sockets Unshielded
