Description
General part information

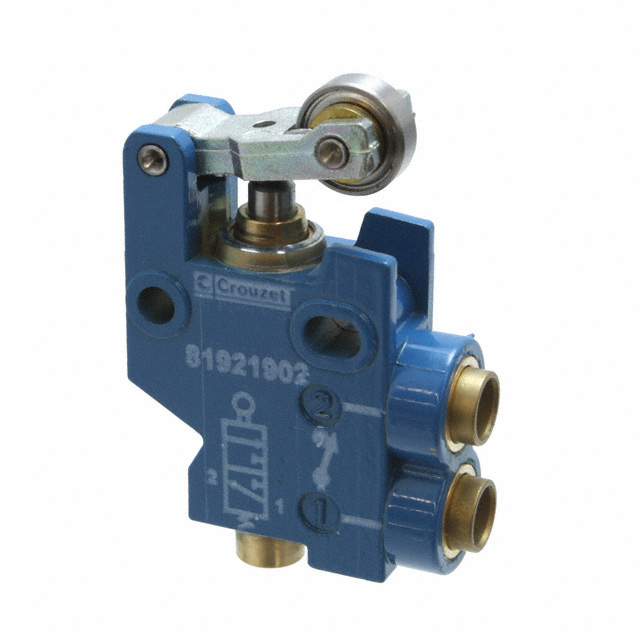

81921902
3/2 Normally Open Position Detector Lever, Roller Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 81921902 |
|---|---|
| Actuator Type | Roller, Lever |
| Connection Method | Push-In Connection for Tubing, Push-In Connection for Tubing 6.00mm Dia |
| Features | Operating Force, Operating Force 18N |
| Fluid Type | Air, Inert Gas |
| Function | 3, 3/2 Normally Open, 2 Normally Open |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 18 N |
| Operating Pressure (Max) | 116 PSI |
| Operating Pressure (Min) | 1 PSI |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -5 °C |
| Orifice Diameter | 0.106 in |
| Tubing Diameter | 6 mm |
| Type | Position Detector |
| Weight | 0.221 lb |
