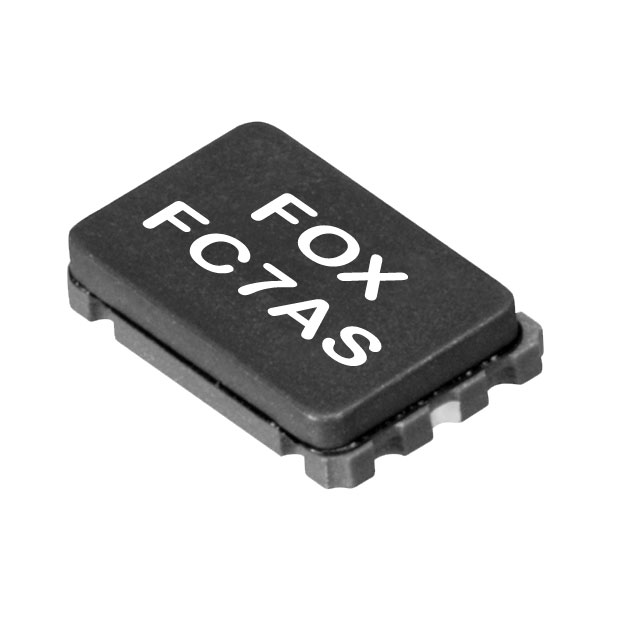

FC7ASBBMD20.0-BULK
ActiveFox Electronics
CRYSTAL 20.0000MHZ 20PF SMD
FC7ASBBMD20.0-BULK
ActiveFox Electronics
CRYSTAL 20.0000MHZ 20PF SMD
Description
General part information
FC7ASBBMD20.0-BULK
20 MHz ±50ppm Crystal 20pF 40 Ohms 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | FC7ASBBMD20.0-BULK |
|---|---|
| ESR (Equivalent Series Resistance) | 40 Ohm |
| Frequency | 20 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 50 ppm |
| Height - Seated (Max) | 0.067 in |
| Load Capacitance | 20 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Package / Case | No Lead, 2-SMD |
| Size / Dimension Length | 0.295 in |
| Size / Dimension Width | 0.197 in |
| Type | MHz Crystal |
