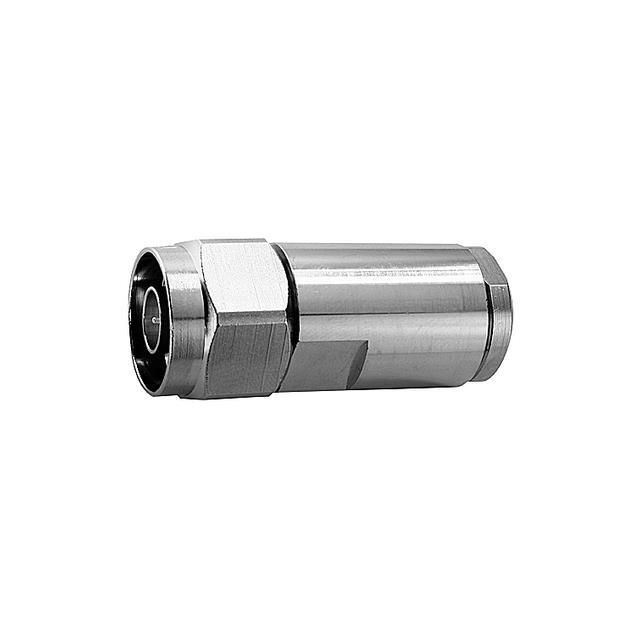

Specification	100023926

Body Finish	Tin
Body Material	Brass
Cable Group	9914, Belden 9913, LMR-400
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	11 GHz
Housing Color	Silver
Impedance	50 Ohm
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insertion Loss	0.1 dB
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-30 °C
Shield Termination	Clamp
Voltage Rating	1000 V
