36PR100KLF
ActiveTT Electronics/BI

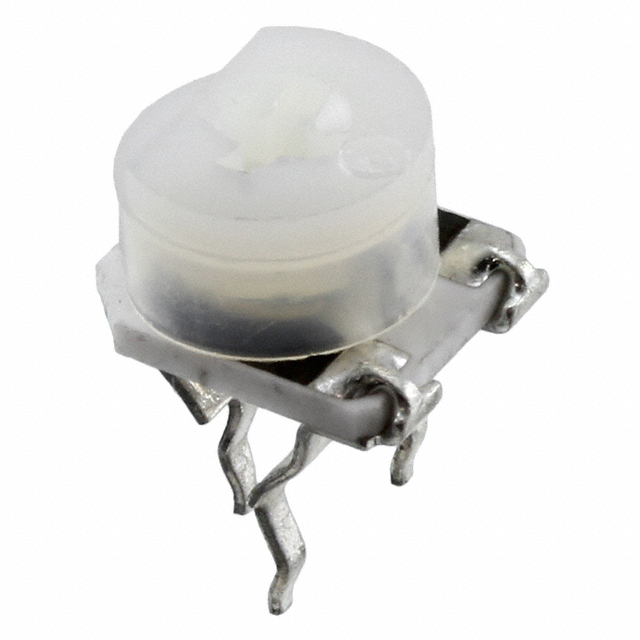

TRIMMER 100K OHM 0.3W PC PIN TOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
36PR100KLF
ActiveTT Electronics/BI
TRIMMER 100K OHM 0.3W PC PIN TOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 36PR100KLF | 36PR Series |
|---|---|---|
| Adjustment Type | Top Adjustment | Top Adjustment |
| Mounting Type | Through Hole | Through Hole |
| Number of Turns | 1 | 1 |
| Power (Watts) | 300 mW | 300 mW |
| Power (Watts) | - | 0.3 W |
| Resistance | 100 kOhms | 5 - 200000 Ohms |
| Resistive Material | Cermet | Cermet |
| Size / Dimension [x] | 7.7 mm | 7.7 - 8.2 mm |
| Size / Dimension [x] | 0.303 in | 0.303 - 0.323 in |
| Size / Dimension [y] | 0.268 in | 0.268 in |
| Size / Dimension [y] | 6.8 mm | 6.8 mm |
| Temperature Coefficient | 250 ppm/°C | 250 ppm/°C |
| Termination Style | PC Pins | PC Pins |
| Tolerance | 20 % | 20 % |
36PR Series
TRIMMER 500 OHM 0.3W PC PIN TOP
| Part | Adjustment Type | Power (Watts) | Power (Watts) | Temperature Coefficient | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type | Resistance | Number of Turns | Resistive Material | Tolerance | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TT Electronics/BI 36PR500LF | Top Adjustment | 300 mW | 0.3 W | 250 ppm/°C | 0.323 in | 6.8 mm | 8.2 mm | 0.268 in | Through Hole | 500 Ohms | 1 | Cermet | 20 % | PC Pins |
TT Electronics/BI 36PR5KLF | Top Adjustment | 300 mW | 0.3 W | 250 ppm/°C | 0.323 in | 6.8 mm | 8.2 mm | 0.268 in | Through Hole | 5 kOhms | 1 | Cermet | 20 % | PC Pins |
TT Electronics/BI 36PR200KLF | Top Adjustment | 300 mW | 0.3 W | 250 ppm/°C | 0.323 in | 6.8 mm | 8.2 mm | 0.268 in | Through Hole | 200000 Ohms | 1 | Cermet | 20 % | PC Pins |
TT Electronics/BI 36PR20KLF | Top Adjustment | 300 mW | 0.3 W | 250 ppm/°C | 0.323 in | 6.8 mm | 8.2 mm | 0.268 in | Through Hole | 20 kOhms | 1 | Cermet | 20 % | PC Pins |
TT Electronics/BI 36PR50KLF | Top Adjustment | 300 mW | 0.3 W | 250 ppm/°C | 0.323 in | 6.8 mm | 8.2 mm | 0.268 in | Through Hole | 50 kOhms | 1 | Cermet | 20 % | PC Pins |
TT Electronics/BI 36PR100KLF | Top Adjustment | 300 mW | 250 ppm/°C | 0.303 in | 6.8 mm | 7.7 mm | 0.268 in | Through Hole | 100 kOhms | 1 | Cermet | 20 % | PC Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.74 | |
| 10 | $ 0.62 | |||
| 100 | $ 0.52 | |||
| 500 | $ 0.46 | |||
| 1000 | $ 0.44 | |||
| 5000 | $ 0.39 | |||
| 10000 | $ 0.37 | |||
Description
General part information
36PR Series
100 kOhms 0.3W PC Pins Through Hole Trimmer Potentiometer Cermet 1.0 Turn Top Adjustment
Documents
Technical documentation and resources
