CDSA15Y1W

Active

ChromeLED

DISPLAY 7SEG 1.50" SGL YELLOW 10

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CDSA15Y1W

Active

ChromeLED

DISPLAY 7SEG 1.50" SGL YELLOW 10

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CDSA15Y1W	CDSA15 Series

Color	Yellow	Red, Yellow
Common Pin	Common Anode	Common Anode
Current - Test	10 mA	10 - 20 mA
Digit/Alpha Size	38.1 mm	38.1 mm
Digit/Alpha Size	1.5 in	1.5 in
Display Type	7-Segment	7-Segment
Millicandela Rating	8 mcd	8 - 300 mcd
Number of Characters [custom]	1	1
Package / Case	10-DIP	10-DIP
Power Dissipation (Max) [Max]	50 mW	50 - 70 mW
Size / Dimension	-	1.732 "
Size / Dimension	-	44 mm
Size / Dimension [y]	1.303 in	1.205 - 1.303 inches
Size / Dimension [y]	33.1 mm	30.6 - 33.1 mm
Size / Dimension [z]	1.846 in, 0.492 "	0.315 - 1.846 "
Size / Dimension [z]	12.5 mm, 46.9 mm	8 - 46.9 mm
Voltage - Forward (Vf) (Typ)	2 V	2 V

CDSA15 Series

DISPLAY 7SEG 1.50" SGL RED 10DIP

Part	Current - Test	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Display Type	Power Dissipation (Max) [Max]	Digit/Alpha Size	Digit/Alpha Size	Color	Common Pin	Package / Case	Number of Characters [custom]	Millicandela Rating
ChromeLED CDSA15R2W	20 mA	1.732 "	0.315 "	8 mm	44 mm	1.205 inches	30.6 mm	2 V	7-Segment	70 mW	38.1 mm	1.5 in	Red	Common Anode	10-DIP	1	300 mcd
ChromeLED CDSA15Y1W	10 mA		0.492 ", 1.846 in	12.5 mm, 46.9 mm		1.303 in	33.1 mm	2 V	7-Segment	50 mW	38.1 mm	1.5 in	Yellow	Common Anode	10-DIP	1	8 mcd
ChromeLED CDSA15R1W	10 mA		0.492 ", 1.846 in	12.5 mm, 46.9 mm		1.303 in	33.1 mm	2 V	7-Segment	50 mW	38.1 mm	1.5 in	Red	Common Anode	10-DIP	1	18 mcd
ChromeLED CDSA15R21W	20 mA	1.732 "	0.315 "	8 mm	44 mm	1.205 inches	30.6 mm	2 V	7-Segment	70 mW	38.1 mm	1.5 in	Red	Common Anode	10-DIP	1	80 mcd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.98

Description

General part information

CDSA15 Series

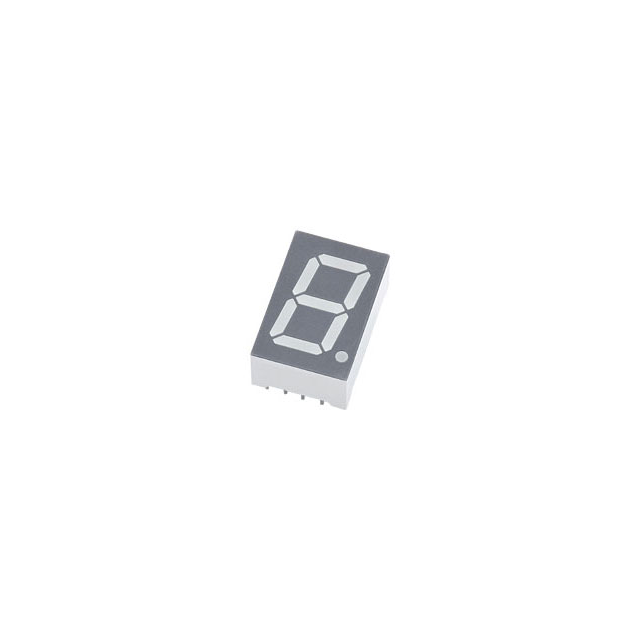

Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Anode 2V 10mA 1.846" H x 1.303" W x 0.492" D (46.90mm x 33.10mm x 12.50mm) 10-DIP
