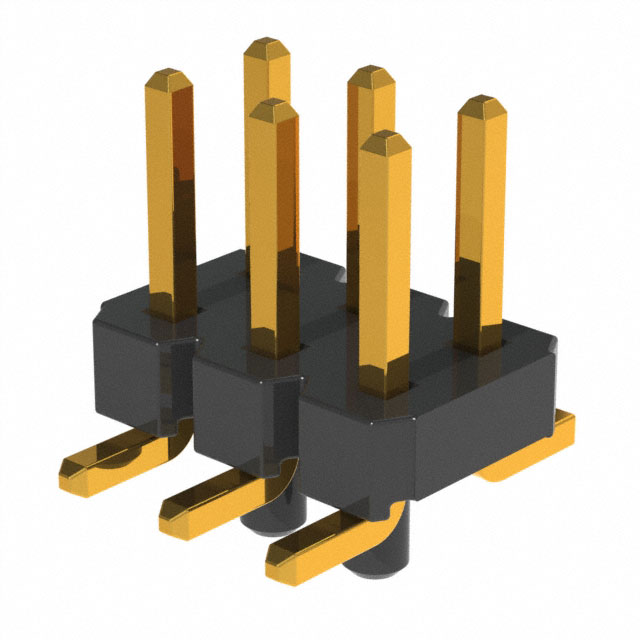

NRPN032MAMP-RC

Active

Sullins Connector Solutions

CONN HEADER SMD 6POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

NRPN032MAMP-RC

Active

Sullins Connector Solutions

CONN HEADER SMD 6POS 2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NRPN032MAMP-RC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	0.141 in
Contact Length - Mating	3.6 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Features	Board Guide
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	150 VDC

NRPN032 Series

Part	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Mating	Voltage Rating	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Shrouding	Termination	Material Flammability Rating	Insulation Material	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Style	Mounting Type	Contact Finish - Mating	Contact Material	Number of Rows	Contact Shape	Fastening Type	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Connector Type	Insulation Height	Insulation Height	Features	Overall Contact Length	Overall Contact Length
Sullins Connector Solutions NRPN032PARN-RC	0.157 in	4 mm	Flash	150 VDC	6	-40 °C	105 ░C	Male Pin	Unshrouded	Solder	UL94 V-0	Nylon 6T Polyamide (PA6T)	2 A	0.141 in	3.6 mm	0.079 in	2 mm	Black	Board to Board Cable	Through Hole Right Angle	Gold	Brass	2	Square	Push-Pull	All	Flash	0.11 in	2.79 mm	Gold	0.079 in	2 mm	Header
Sullins Connector Solutions NRPN032MAMP-RC			Flash	150 VDC	6	-40 °C	105 ░C	Male Pin	Unshrouded	Solder	UL94 V-0	Nylon 6T Polyamide (PA6T)	2 A	0.141 in	3.6 mm	0.079 in	2 mm		Board to Board Cable	Surface Mount	Gold	Brass	2	Square	Push-Pull	All	Flash			Gold	0.079 in	2 mm	Header	1.5 mm	0.059 "	Board Guide
Sullins Connector Solutions NRPN032PAEN-RC			Flash	150 VDC	6	-40 °C	105 ░C	Male Pin	Unshrouded	Solder	UL94 V-0	Nylon 6T Polyamide (PA6T)	2 A	0.141 in	3.6 mm	0.079 in	2 mm	Black	Board to Board Cable	Through Hole	Gold	Brass	2	Square	Push-Pull	All	Flash	0.11 in	2.79 mm	Gold	0.079 in	2 mm	Header	2 mm	0.079 in		8.38 mm	0.33 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.63
		10	$ 0.55
		101	$ 0.46
		505	$ 0.40
		1010	$ 0.33
		5050	$ 0.29
		10100	$ 0.28

Description

General part information

NRPN032 Series

Connector Header Surface Mount 6 position 0.079" (2.00mm)

Documents

Technical documentation and resources

No documents available
