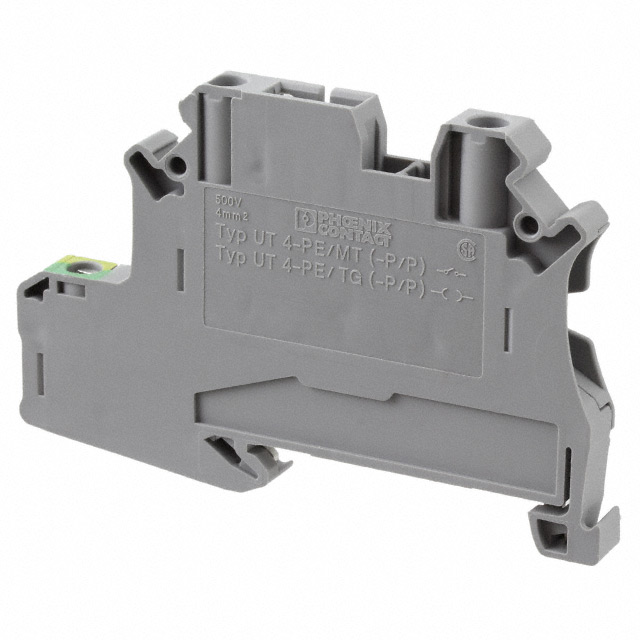

3070024
ActivePhoenix Contact
CONN TERM BLK DISCONN 10-26AWG
3070024
ActivePhoenix Contact
CONN TERM BLK DISCONN 10-26AWG
Description
General part information
3070024
Terminal Block Connector 3 Position Disconnect, Isolated Gray 10-26 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 3070024 |
|---|---|
| Color | Gray |
| Current - IEC | 20 A |
| Disconnect Type | Open |
| Grounded Levels | 1 |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 2 |
| Number of Positions | 3 |
| Stripping Length | 9 mm |
| Terminal Width | 6.2 mm |
| Termination Style | Screw |
| Type | Isolated, Disconnect |
| Voltage - IEC | 500 V |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 10 AWG |
| Wire Gauge or Range - mm² (Maximum) | 6 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.14 mm² |
