BPJF03AUX
ActiveSwitchcraft Inc.

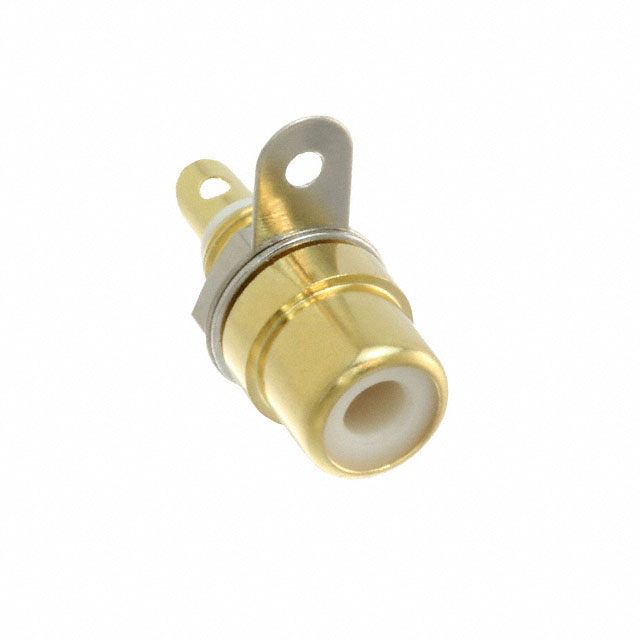

CONN RCA JACK MONO 3.2MM PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BPJF03AUX
ActiveSwitchcraft Inc.
CONN RCA JACK MONO 3.2MM PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BPJF03AUX | BPJF03 Series |
|---|---|---|
| Actual Diameter [custom] | 8.25 mm | 8.25 mm |
| Actual Diameter [custom] | 0.134 " | 0.134 " |
| Actual Diameter [custom] | 3.4 mm | 3.4 mm |
| Actual Diameter [custom] | 0.325 " | 0.325 " |
| Body Color | Silver | Silver |
| Body Material | Brass | Brass |
| Connector Type | Phono (RCA) Jack | Phono (RCA) Jack |
| Contact Material | Brass | Brass |
| Contact Material - Plating | - | Nickel |
| Contact Material - Plating [custom] | Gold | Gold |
| Features | Mounting Hardware, Grounding Tab | Mounting Hardware, Grounding Tab |
| Gender | Female | Female |
| Includes | Connector, Washer, Nut | Connector, Washer, Nut |
| Industry Recognized Mating Diameter [diameter] | 9 mm, 3.2 mm | 3.2 - 9 mm |
| Insulation Color | White | White |
| Internal Switch(s) | False | False |
| Number of Positions/Contacts [custom] | 2 | 2 |
| Number of Positions/Contacts [custom] | 2 | 2 |
| Panel Hole Size | 10.2 mm | 10.2 mm |
| Panel Hole Size | 0.402 in | 0.402 in |
| Shielding | Unshielded | Unshielded |
| Signal Lines | Mono | Mono |
| Termination | Solder Eyelet(s) | Solder Eyelet(s) |
| Thread Size | 1/4"-32 | 1/4"-32 |
BPJF03 Series
CONN RCA JACK MONO 3.2MM PNL MT
| Part | Contact Material | Industry Recognized Mating Diameter [diameter] | Panel Hole Size | Panel Hole Size | Connector Type | Body Material | Signal Lines | Contact Material - Plating [custom] | Body Color | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Internal Switch(s) | Thread Size | Shielding | Insulation Color | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Actual Diameter [custom] | Includes | Gender | Termination | Features | Contact Material - Plating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. BPJF03AUX | Brass | 3.2 mm, 9 mm | 10.2 mm | 0.402 in | Phono (RCA) Jack | Brass | Mono | Gold | Silver | 2 | 2 | 1/4"-32 | Unshielded | White | 8.25 mm | 0.134 " | 3.4 mm | 0.325 " | Connector, Nut, Washer | Female | Solder Eyelet(s) | Grounding Tab, Mounting Hardware | ||
Switchcraft Inc. BPJF03X | Brass | 3.2 mm, 9 mm | 10.2 mm | 0.402 in | Phono (RCA) Jack | Brass | Mono | Silver | 2 | 2 | 1/4"-32 | Unshielded | White | 8.25 mm | 0.134 " | 3.4 mm | 0.325 " | Connector, Nut, Washer | Female | Solder Eyelet(s) | Grounding Tab, Mounting Hardware | Nickel |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.12 | |
| 10 | $ 2.83 | |||
| 100 | $ 2.49 | |||
| 1000 | $ 1.93 | |||
Description
General part information
BPJF03 Series
3.20mm ID, 9.00mm OD (RCA) Phono (RCA) Jack Mono Connector Solder Eyelet(s)
