2-1318118-8

Active

TE Connectivity AMP Connectors

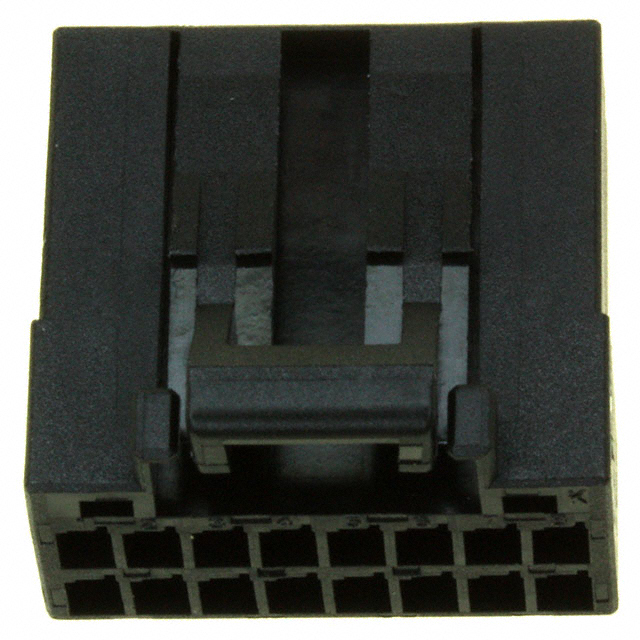

CONN RCPT HSG 16POS 2.50MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 16POS 2.50MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2-1318118-8	1318118 Series

Color	Black	Black, Natural
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket, Male Pin
Fastening Type	Latch Lock	Latch Lock
Features	Polarizing Key	Polarizing Key
Insulation Material	Thermoplastic, Glass Filled, Polyester	Thermoplastic, Glass Filled, Polyester, Polyester, Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	16	16
Number of Positions	-	12 - 20
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch [x]	0.098 in	0.098 in
Pitch [x]	2.5 mm	2.5 mm
Row Spacing	0.148 in	0.148 in
Row Spacing	3.75 mm	3.75 mm

CONN RCPT HSG 12POS 2.50MM

Part	Row Spacing	Row Spacing	Fastening Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Note	Connector Type	Features	Contact Termination	Contact Type	Mounting Type	Pitch [x]	Pitch [x]	Color	Number of Rows	Insulation Material	Number of Positions
TE Connectivity AMP Connectors 2-1318118-6	0.148 in	3.75 mm	Latch Lock	12	105 ░C	-55 °C	Contacts Not Included	Receptacle	Polarizing Key	Crimp	Female Socket	Free Hanging (In-Line)	0.098 in	2.5 mm	Black	2
TE Connectivity AMP Connectors 2-1318118-8	0.148 in	3.75 mm	Latch Lock		105 ░C	-55 °C	Contacts Not Included	Receptacle	Polarizing Key	Crimp	Female Socket	Free Hanging (In-Line)	0.098 in	2.5 mm	Black	2	Glass Filled, Polyester, Thermoplastic	16
TE Connectivity AMP Connectors 9-1318118-9	0.148 in	3.75 mm	Latch Lock	20	105 ░C	-55 °C	Contacts Not Included	Receptacle	Polarizing Key	Crimp	Female Socket	Free Hanging (In-Line)	0.098 in	2.5 mm	Natural	2	Polyester, Glass Filled
TE Connectivity AMP Connectors 1-1318118-9	0.148 in	3.75 mm	Latch Lock	20	105 ░C	-55 °C	Contacts Not Included	Receptacle	Polarizing Key	Crimp	Female Socket	Free Hanging (In-Line)	0.098 in	2.5 mm	Black	2	Glass Filled, Polyester, Thermoplastic
TE Connectivity AMP Connectors 9-1318118-8	0.148 in	3.75 mm			105 ░C	-55 °C	Contacts Not Included	Receptacle		Crimp	Male Pin	Free Hanging (In-Line)	0.098 in	2.5 mm	Natural	2	Polyester, Glass Filled	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Rectangular Connectors - Housings Receptacle Black 0.098" (2.50mm)
