Description
General part information

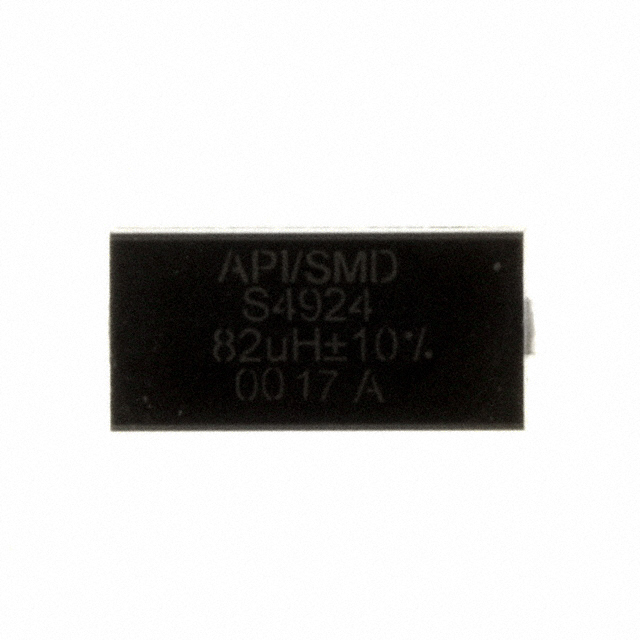

S4924-823K
82 µH Shielded Inductor 342 mA 2.44Ohm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | S4924-823K |
|---|---|
| Current - Saturation (Isat) | 0.12 mA |
| Current Rating | 342 mA |
| DC Resistance (DCR) (Max) | 2.44 Ohm |
| Frequency - Self Resonant | 10.5 MHz |
| Height - Seated (Max) | 0.22 in |
| Inductance | 82 µH |
| Inductance Frequency - Test | 2.5 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Q | 50 |
| Shielding | Shielded |
| Size / Dimension Length | 0.505 in |
| Size / Dimension Width | 0.24 in |
| Tolerance | 10 % |
